  MIW Double Cylinder Machine

  Dual hydraulic cylinders for two man operation.

• Adjustable cylinder stroke with scale.
• 5 work stations.
• Large two piece gauging table for punch station.
• Quick Change coupling nut and sleeve for rapid replacement of punch.
• Section shear for cutting angles at either at 90 degrees or 45 degrees.
• Bar shear for cutting round and square bar.
• 2 movable foot pedals.
• Electrically interlocked safety guard for notching station.
• Magnetic light.

SIW Single Cylinder Machine

Hydraulic Holddown

TECHNICAL SPECIFICATIONS (click link below)

Ironworker Specifications

Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily. Sheet processing can be done multi-directional and flexible until 0.2″ thickness. Hydraulic, electronic, electric and mechanic components that are respected with its high quality worldwide have been used on the machine.

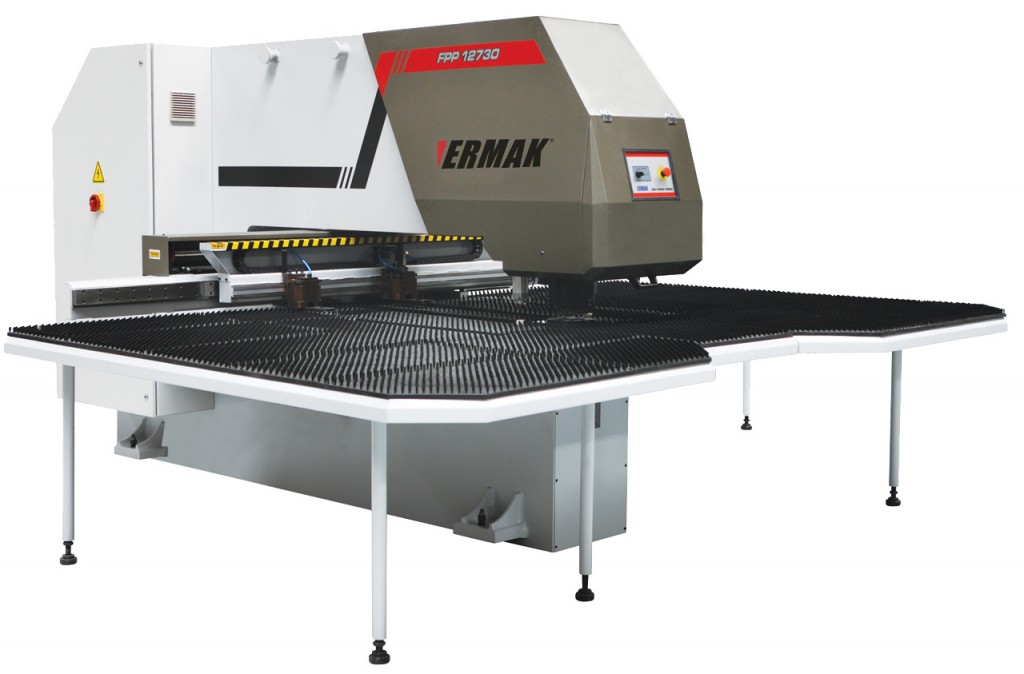

CNC CONTROLLER

• GE Fanuc series 18i-PB controller has 10.4″ color LCD screen, 512 KB part program memory
• All related punch functions
• Program transfer availability with PCMCIA and ETHERNET
• Worldwide Fanuc Service advantage

SHEET HOLDERS

• Automatic repositioning to process sheets as long as 79″
• Two pieces of sheet holder clamp opens with spring tension and tightens with pneumatic
• Sheet is pinched without causing any deformation
• Sheet referencing bar and CAD/CAM controlled pneumatic trap to drop the cut part to the wheeled part box

TECHNICAL SPECIFICATIONS (click below for specifications)

RPP FPP and CPP CNC Punch Press – Rotative Punch Specifications

ERMAKSAN has been manufacturing metal working machinery since 1965; they make annually approximately 3000 machines in their fully modernized and equipped 861000 ft2 factory. ERMAKSAN is today the largest sheet metal working machinery factory under one roof in Europe.

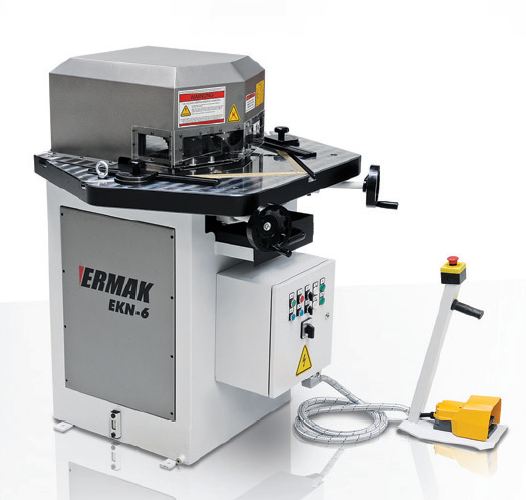

Ermak EKN variable rake hydraulic corner notchers have a strong frame with its statically and dynamically rigid steel table and top beam material. T-slot top table allows precise cuttings and there is no need for alignment for different sheet thicknesses for automatic blade gap adjustment. EKN series perform frequent cutting via 4 hydraulic hold-down cylinders.

STANDARD FEATURES

• Cutting angle adjustment from 30 degrees to 140 degrees by hand wheel
• Statically and dynamically rigid T-slot table and top beam material
• Automatic blade gap adjustment
• Long life-time and easy operation
• Removable foot pedal
• Adjustable stroke
• Plexiglas protections
• Fast adjustable cutting angles by rulers and set squares
• 4 piece hold-down cylinders to fix the sheet during cutting
• Scrap box
• Maintenance free Hoerbiger hydraulic system

Cutting capacity

Technical information

Dimensions

CLICK LINKS/PICTURES BELOW FOR INFORMATION

CPP CNC Punch Press / Plasma Punch

RPP CNC Punch Press / Rotative Punch

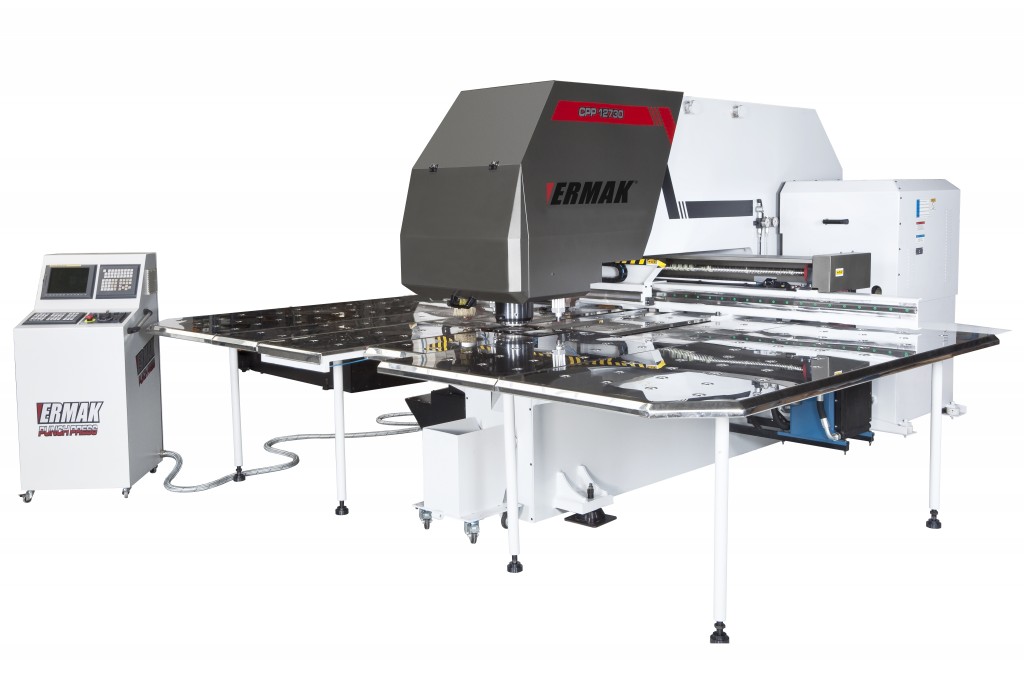

Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily.

The combination of HiFocus sensitive plasma cutting and hydraulic punching on a very strong system gives a giant leap in production. Moving the sheet on X, Y axes on a stainless table with roller balls and clamps. Sheet can be cut as sensitive as required. Contour by servo motorized automatic height adjusted torch at plasma unit. After performing perforations or forming operations at the punch unit. It is capable of cutting and perforating processes at high speed and accuracy. It also has the capacity of high production and an alternative cutting process in comparison to other high cost cutting methods. Furthermore the production period will be shortened on these kinds of workstations because the material will not have to be transfer from one work station to another.

STANDARD EQUIPMENT

• X, Y, C HiFocus Plasma Generator + Automatic Servo Motorized Height Control (Z)
• Bosch Rexroth VSP 16 CNC controller Industrial PC
• 12″ TFT Colored High Resolution Touch Screen
• Windows XP operating system
• USB entrance at panel
• Protective USB (Power Supply) for electricity cut off and voltage undulation
• ETHERNET Interface for Communication and Network Connection between the office and machine
• The operator panel activates easily the velocity of axes, clamp functions, reference positions, trap and tool and punch functions.
• 2 pieces ERMAK sheet holder clamps
• Mobil Command Foot Pedal
• Automatic Repositioning (for sheets wider than 79” and for zones under clamps.
• Check of work zone by CAD/CAM)
• Warning Lamp
• Brushed Type Table
• Cooler
• Automatic CNC controlled trap (Scrap / Part discrimination)
• Wheeled Scrap Box
• ERMAK-BIEMMETI Sextet Multi TOOL “D Station ” ( Punch, Die, Stripper) A station round .312”, .375”, .750”, rectangular .157” x .750” (2 nos.), square .67” x 0.67”
  or
• ERMAK Biemetti Thick Turret adaptor from D station to A station round .312″, .375″, .750″, rectangular .159″ x .708″ (2 nos.), square .55” x  .55

• CAD/CAM Software LANTEK EXPERT COMBINATION**
• Machine Instruction and Maintenance Manual
• ERMAK Lantek CAD/CAM training CD for easy usage
• KJELLBERG HiFocus 100 Plasma Generator Torch Unit with rustproof option
• IHT PCS1200 Automatic CNC Controlled Motorized Height Control Unit

OPTIONAL EQUIPMENT

• ERMAK Biemetti octet Multi Tool D Station

• Round .197″, .230″, .5″
• Rectangular .375′ x .197″
• Rectangular .120″ x .551″
• Triangle 584″, 30 degree
• Square .375″

• Wilson tool Octet Thick Turret D Station

• Round .157″, .276″, .413″
• Oval .472″, .197″
• Rectangular .375″ x .098″
• Rectangular .375″ x .197″
• Square .312″
• Triangle 584″, 30 degree

• Adaptor for B, C stations
• 3 x B Multi Tool Station, 1 x Single Tool Station, 10 stationed multi tool
• Tools for different punching shapes and forming applications
• Adaptor for Trumph system
• Additional clamps
• Coated tools for stainless steel punching
• Mechanic safety for security
• Infrared Cat. 4 Light Guard Body Protection confirms to CE
• Second user dongle for LANTEK CAD/CAM
• Plasma application with Rotative Head Punch Press Absolute Servo Synchronic Zero Gap T1, T2 axes
• Special sheet holder clamps for different capacities ad thicknesses (larger than 6 mm)

TECHNICAL SPECIFICATIONS (click link below)

RPP FPP and CPP CNC Punch Press – Rotative Punch Specs

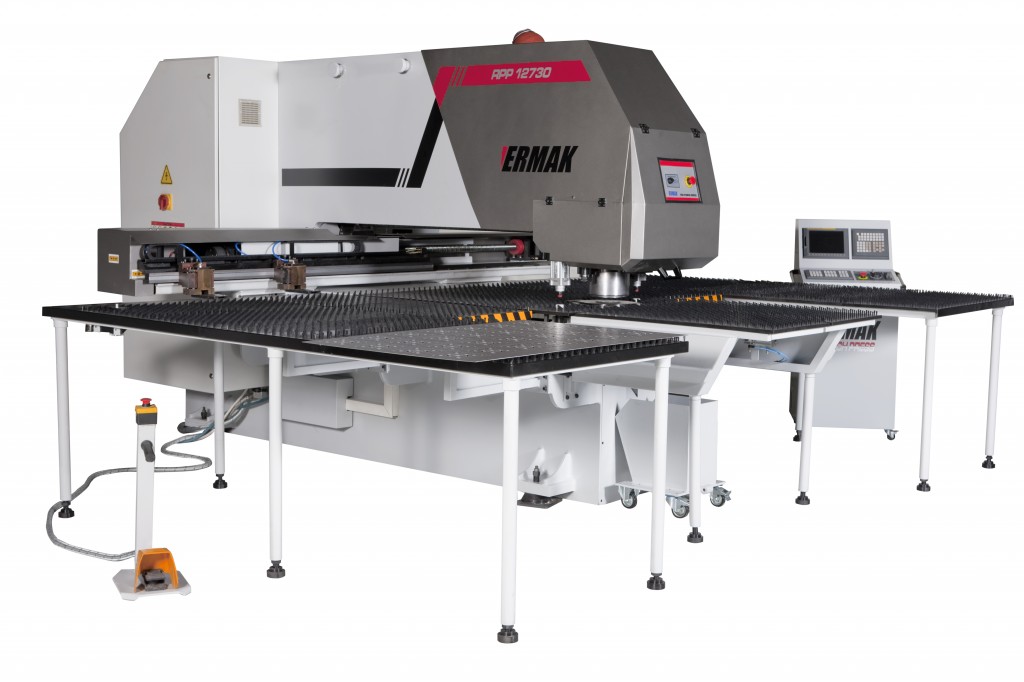

Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily. Sheet processing can be done multi-directional and flexible until 6 mm thickness. Hydraulic, electronic, electric and mechanic components that are respected with its high quality worldwide have been used on the machine. In addition to its superior features and strong rigid body, main goal of ERMAK RPP series is high productivity and flexibility by means of angular moving T1, 12 top and bottom tool axes working synchronized with X, Y, C machine axes.

STANDARD EQUIPMENT

• X,Y,C,T1,T2 + Punch Axis
• Absolute Servo Synchronic Zero Gap T1. T2, C axes
• Bosch Rexroth VSP 16 CNC controller Industrial PC
• 12″ TFT Colored High Resolution Touch Panel Screen
• Windows XP operating system
• USB entrance at panel
• Protective USB (Power Supply) for electricity cut off and voltage undulation
• ETHERNET Interface for Communication and Network Connection between the office and machine
• The operator panel activates easily the velocity of axes, clamp functions, reference positions, trap and tool and punch functions.
• 2 pieces ERMAK sheet holder clamps
• Mobil Command Foot Pedal
• Automatic Repositioning (for sheets wider than 79” and for zones under clamps. Check of work zone by CAD/CAM)
• Warning Lamp
• Brushed Type Table
• Cooler
• Automatic CNC controlled trap (Scrap / Part discrimination)
• Wheeled Scrap Box
• ERMAK-BIEMMETI Sextet Multi TOOL “D Station ” ( Punch, Die, Stripper) A station round .312”, .375”, .750”, rectangular .157” x .750” (2 nos.), square .67” x 0.67”
  or
• ERMAK Biemetti Thick Turret adaptor from D station to A station round 8, 10, 20 mm, rectangular 4×18 mm (2 nos.), square .55” x  .55”
  or
• ERMAK Biemetti Thick Turret adaptor from D station to A station round .312”, .375”, .750”, rectangular .157” x .7’ (2 nos.), square .55” x  .55”
  or
• ****ERMAK-Biemetti octet Multi Toot (D Station) Round .196”, .250”, .312”, .5”
  Rectangular .375’ x .196”
  Rectangular .120” x .55”
  Triangle 584” 30 degree
  Square .375”
• CAD/CAM Software LANTEK EXPERT PUNCH
• Semiautomatic Nesting (1 nos. software, 1 nos. dongle), post-processor
• Machine Instruction and Maintenance Manual
• ERMAK Lantek CAD/CAM training CD for easy usage

OPTIONAL EQUIPMENT

• Wilson Tool Octet Thick Turret D Station
• Round .157”, .276”, .413” – Oval .472” x .196” – Rectangular .472” x .98” Rectangular .375” x .196” – Square .312” – Triangle 584” 30 degree
• Adaptor for B, C stations
• 3xB MULTI TOOL station, 1 x C SINGLE TOOL station, 10 stationed Multi Tool
• Tools for different punching shapes and forming applications
• Adaptor for Trumpf System
• Additional Clamps
• Coated tools for stainless steel punching
• Mechanic safety for security
• Infrared Cat.4 Light Guard Body Protection confirms CE
• LANTEK EXPERT II PUNCH for Full Automatic Nesting CAD/CAM
• Second user dongle for LANTEK CAD/CAM

CONTROLLER

• Bosch & Rexroth brand VSP 16 type,
• 12″ TFT with high resolution, colored, touch panel screen is used on the machine. UPS,
• USB are available for customer use on the panel.
• The control unit is equipped with 2 Ghz high performance processor,
• 512MB Ram,
• 20 GB Hard Disc,
• VGA Ethernet ( 10/100 Base – T).
• PS2 Serial Ports, USB,
• IP65 protection class 0.25g. / 5g. vibration/shock resistance,
• EMC Test certificated Windows XP operating system has common and easy service.
• Economically designed control panel can be moved around the machine easily.
• Protective UPS (Power Source) is included for electricity cut off and voltage undulation.
