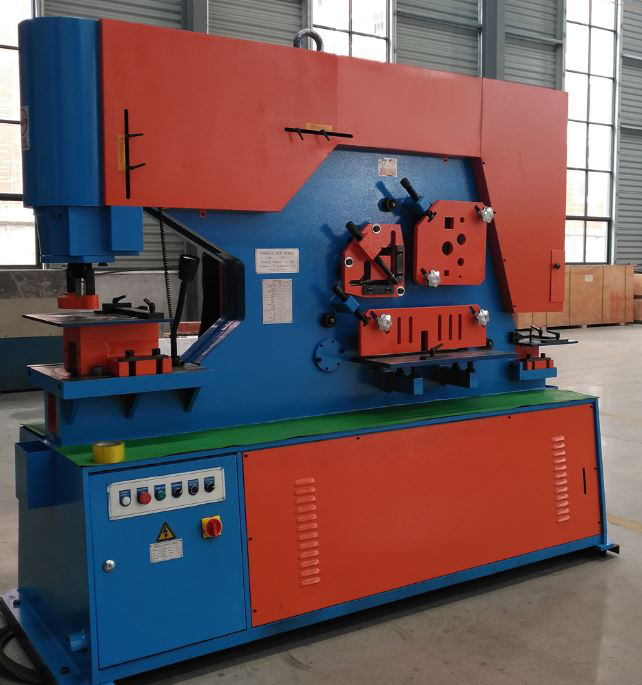

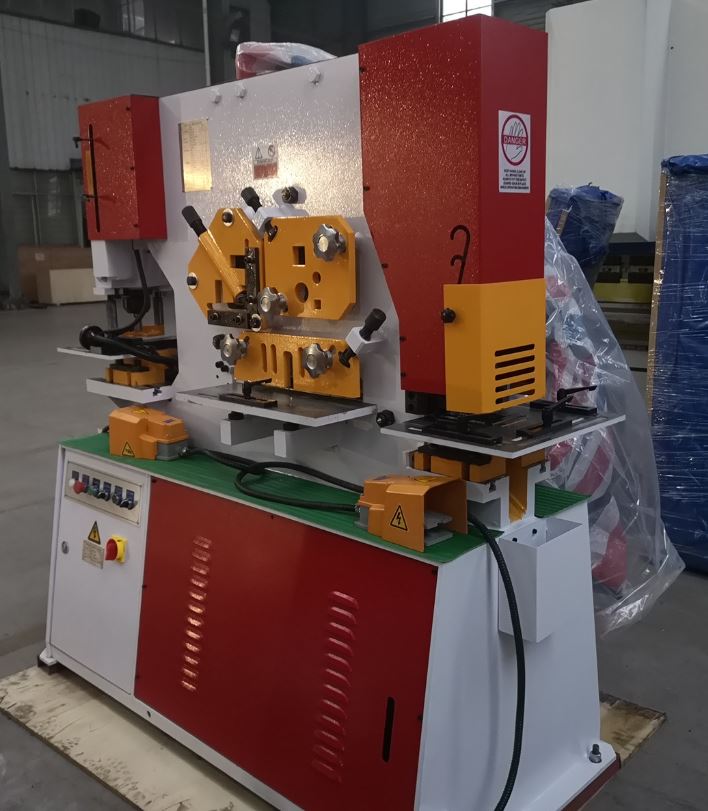

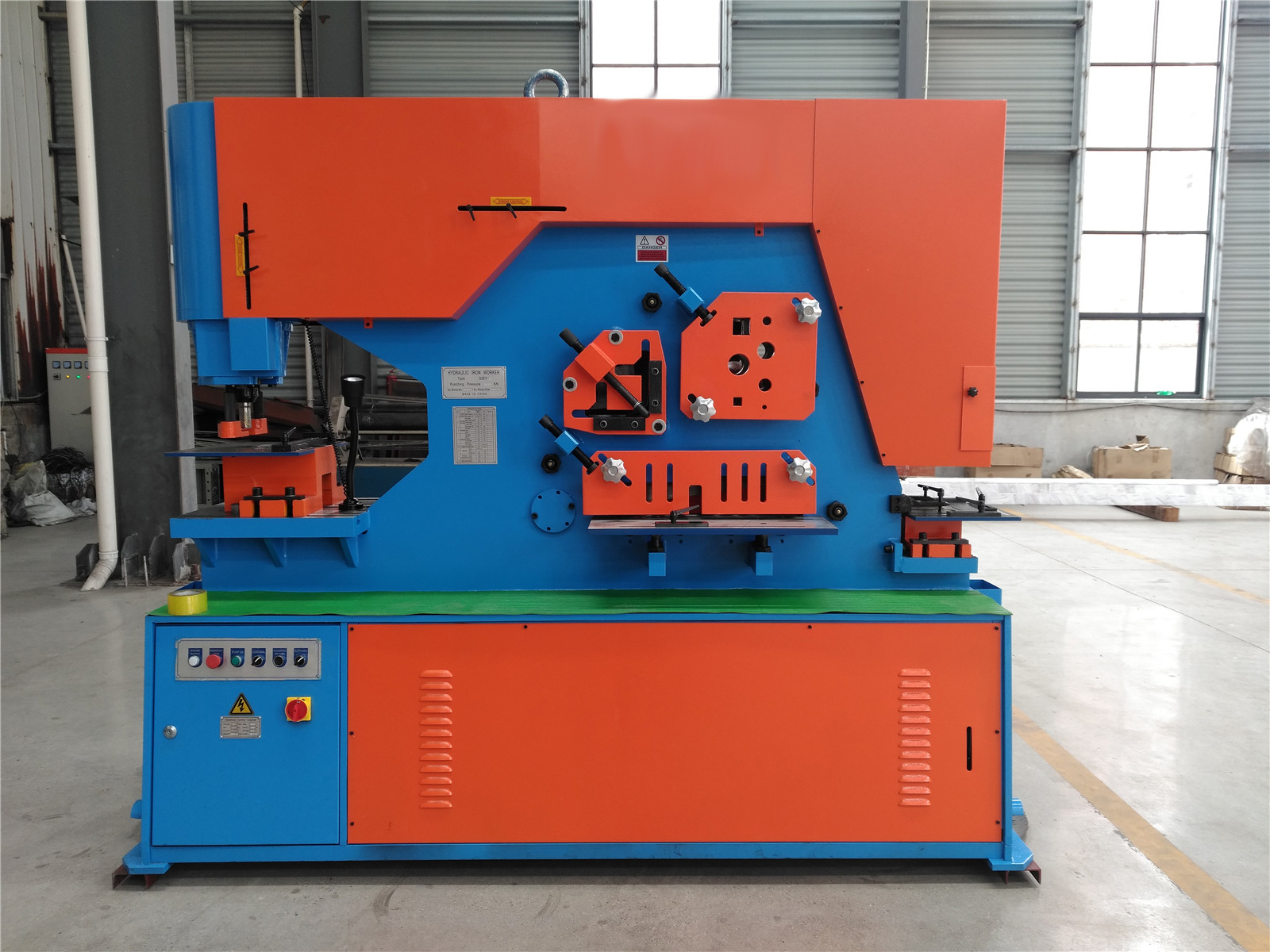

Q35Y ironworker is also called Hydraulic Combination punching-shear machine with shearing mould with types of Q35Y12, Q35Y-16, Q35Y-20, Q35Y-25, Q35Y-30 Hydraulic Iron worker can also bend the plate below 20” (500mm). All the components of Hydraulic Iron worker are of the highest quality in their safety, function, capability and maintenance.

Our hydraulic ironworkers notching section is great for working with solid plate and angle iron. This notching station can be outfitted with the optional vee notcher. This machine is typically in stock for quick deliveries.

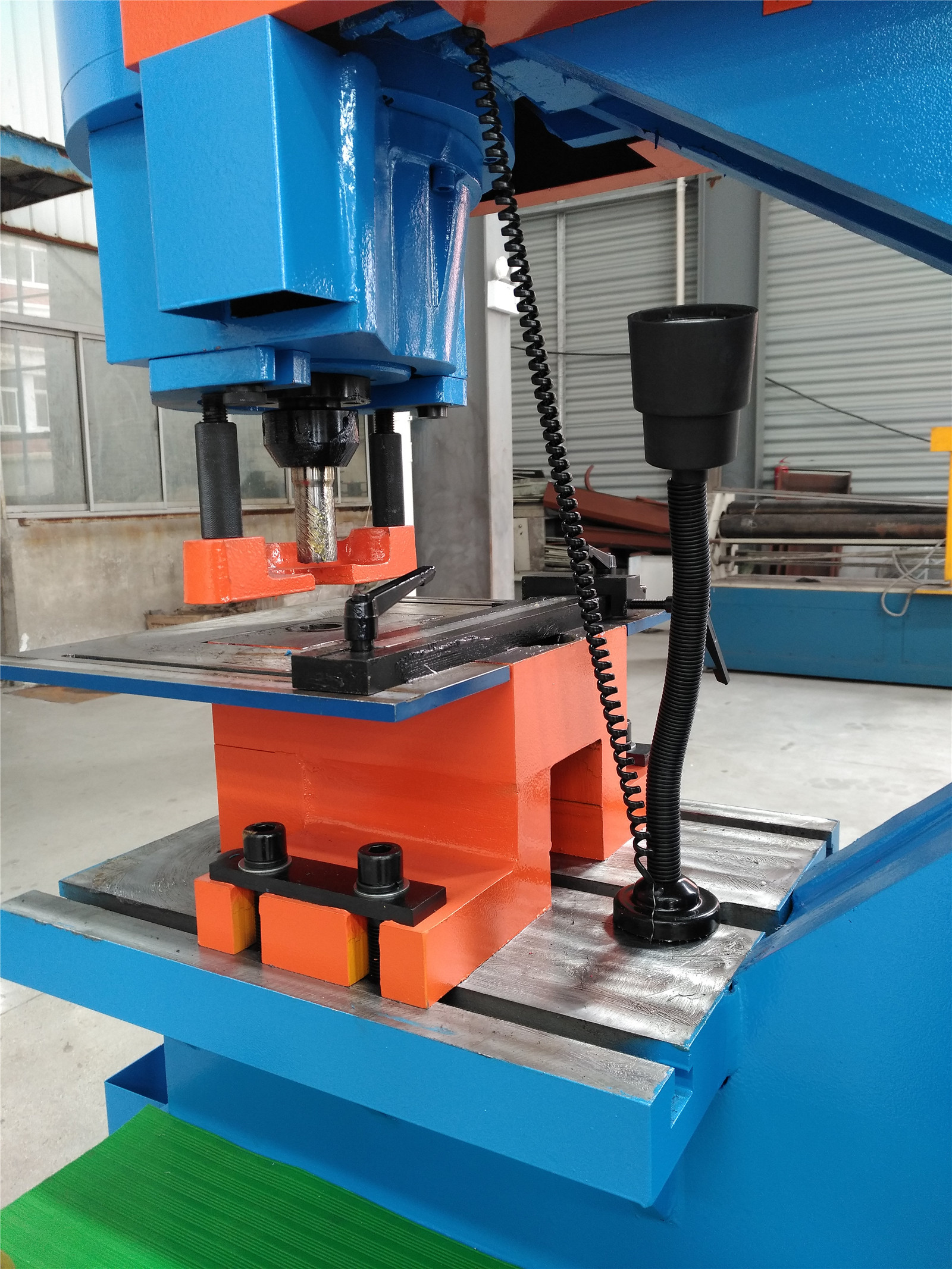

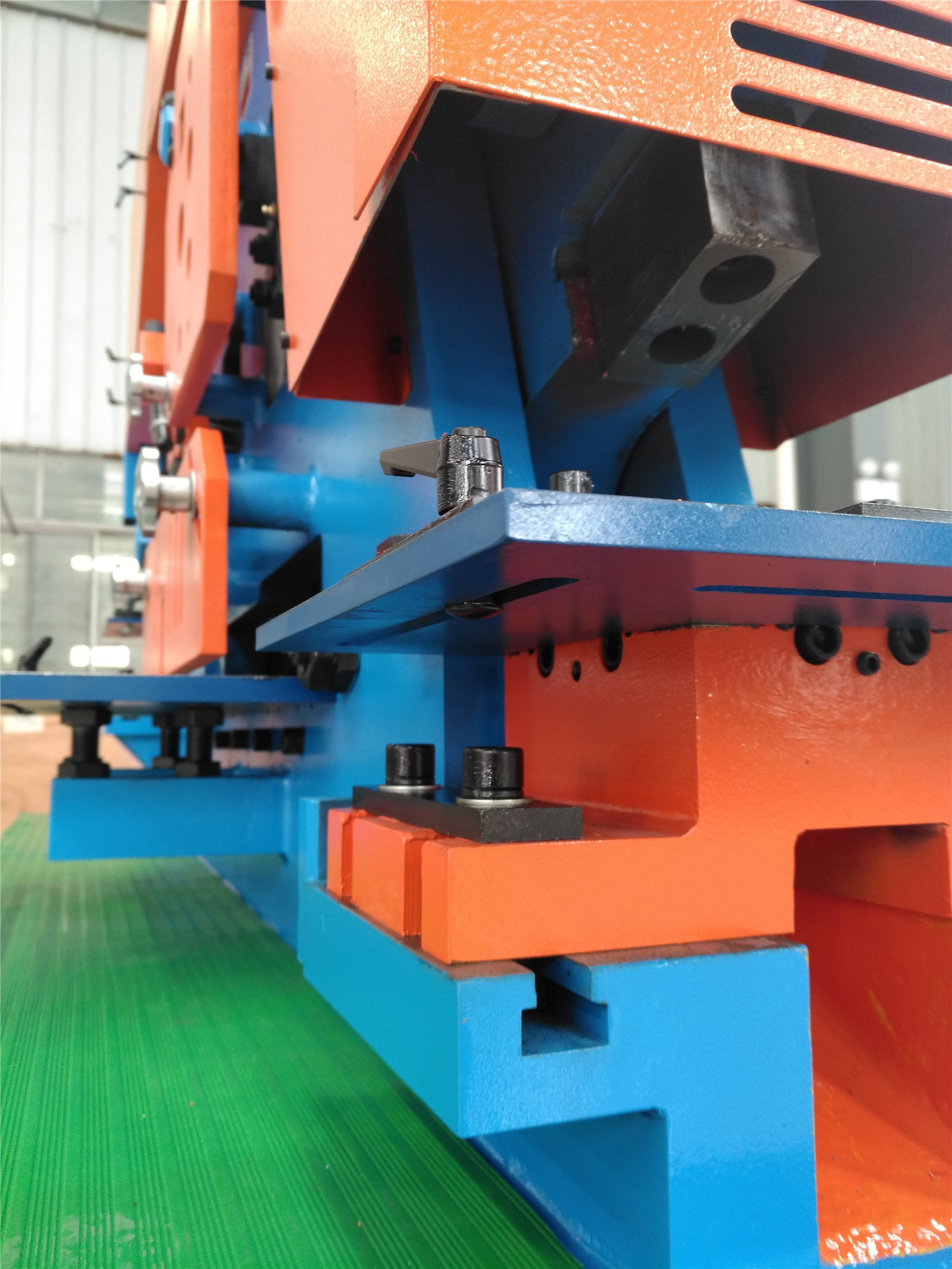

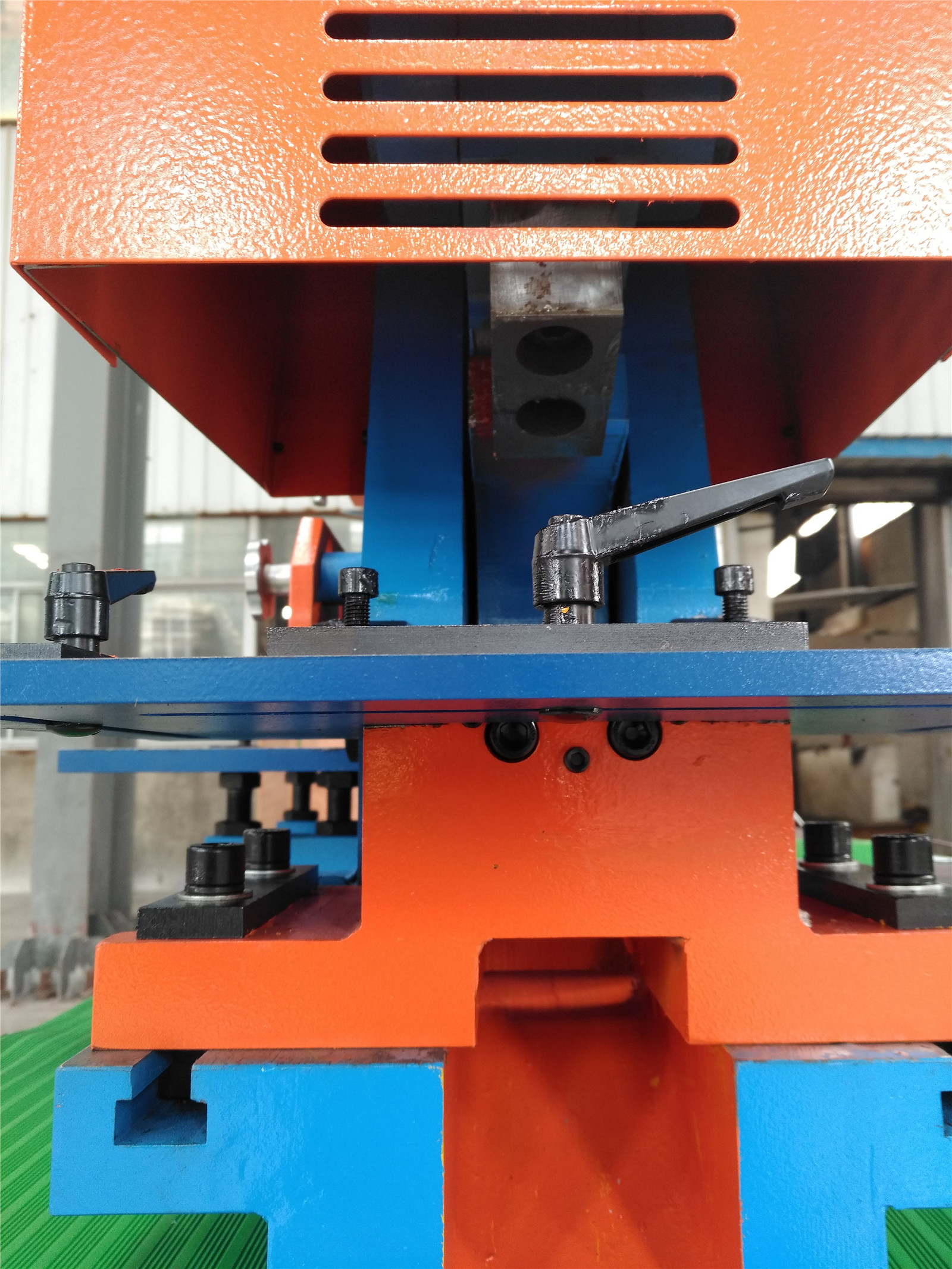

1) Punching: Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.

2) Large viewing window on stripper swing away design for ease of operation. Large two-piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.

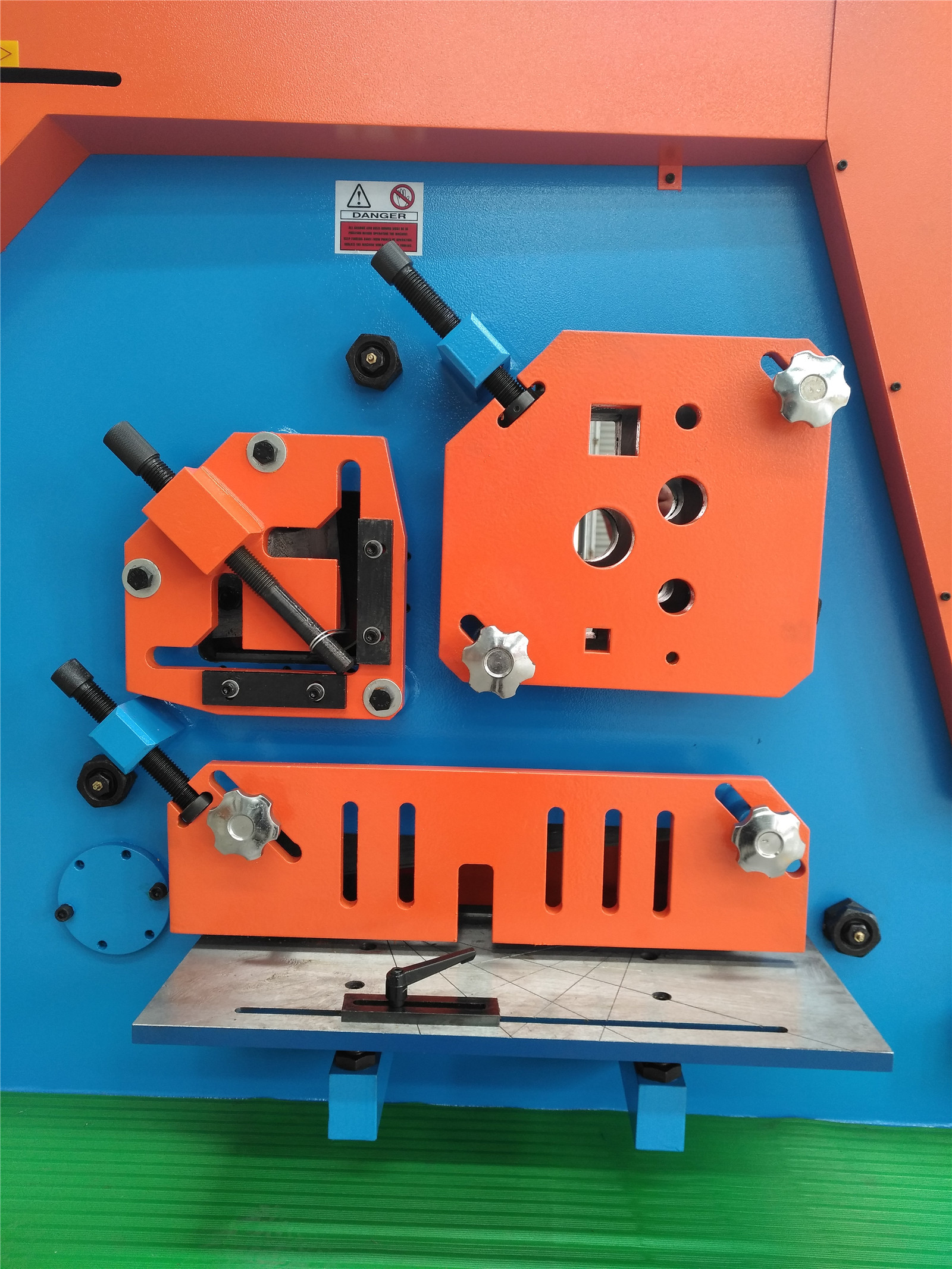

3) Shearing: Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.

4) The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.

5) Easily adjustable hold-down device for accurate plate cutting. Large 15 squaring arm with inlaid scale. Special anti-distorted blade for quality cutting. Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.

6) Notching: Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.

7) Bending: Can also bend the plate below 20” (500mm).

Features:

✓ Robust and accurate steel frame
✓ Large punch table with scales
✓ Removable bolster for punching flanges and channel and beam
✓ 2 independent hydraulic cylinders
✓ 2 shielded foot controls ✓ 2 Separate Die Openings for oversized punching
✓ 5 working stations for wide applications
✓ Power inching on all 5 work stations
✓ Plate shear support/table and notching table

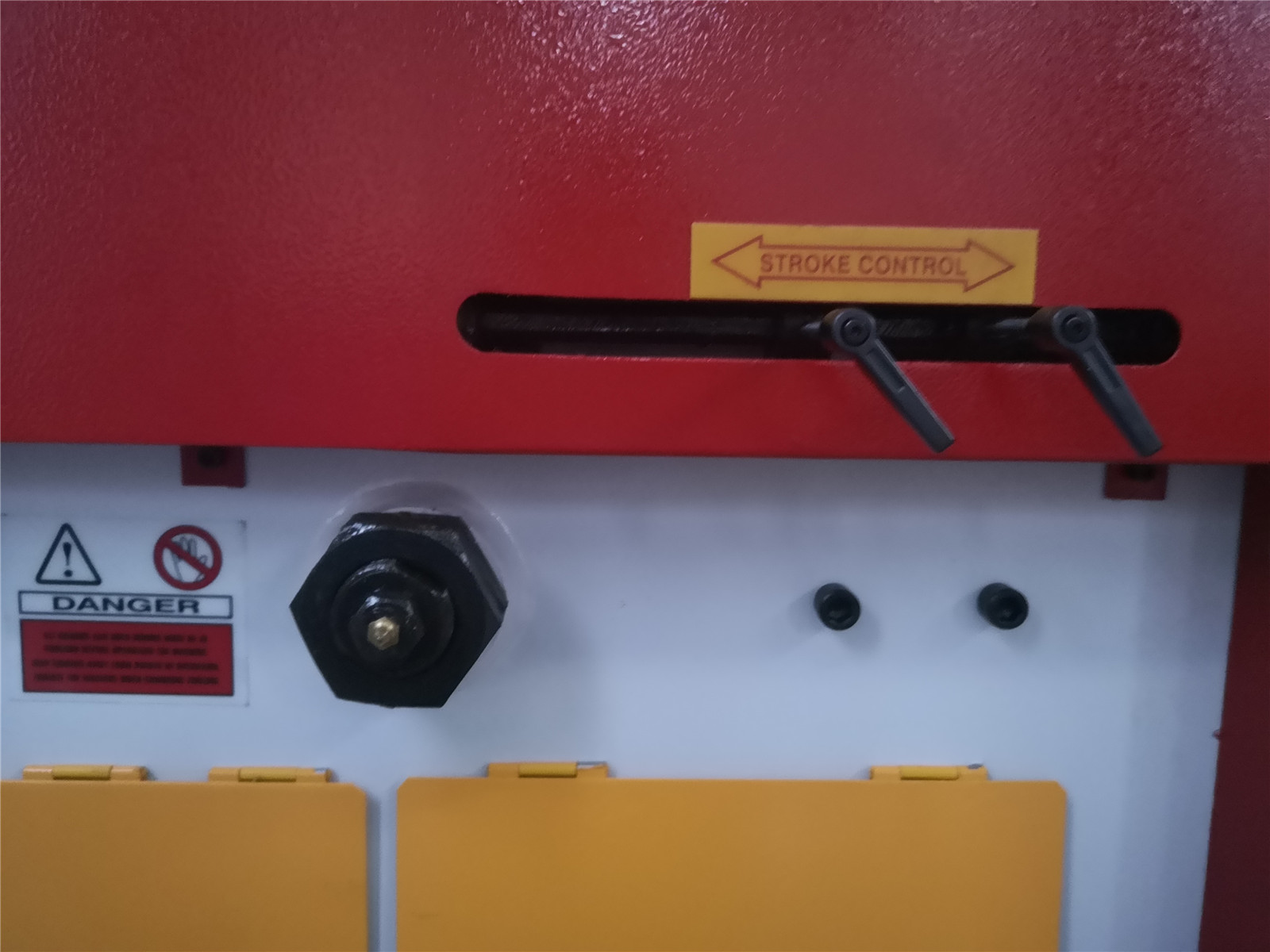

✓ Adjustable stroke controls with indicators on both cylinders
✓ Movable work light as standard
✓ Overload protection on hydraulic system
✓ Electric backgauge
✓ Optional bending attachment
✓ Optional 5 sets punches and dies
