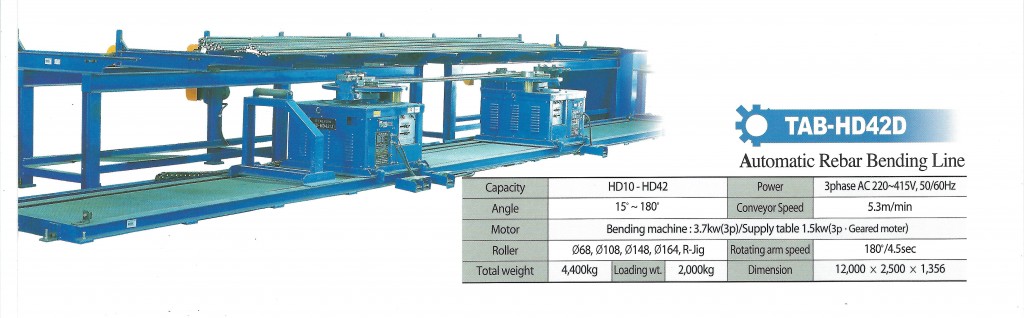

TAB-HD42D Automatic Rebar Bending Line

Posted on September 17, 2011 by sonja

Specifications

  1. Diameter of applicable steel bar: HD10 – HD25
  2. Steel bar material: SD400 / B4449 / ASTM A615
  3. Length of applicable steel bar:
    1. Max 26′ (8 meter) – standard
    2. Max 33′ (10 meter) – optional
Steel bar diameter 10 13 16 19 22 25
Number of steel bars 9 7 5 2 1 1
  1. Bending angle: 15 degrees (min)  - 180 degrees (max)
  2. Processed inscribed diameter: 4D (D = steel bar diameter)
  3. Processed main axis diameter: 39
  4. Replaceable roller types: 62 diameter, 84 diameter
  5. Processed length (10 diameter): 9.44″ (240 mm) min – 276″ (7000 mm) max

Power supply

  1. AC 3-phase, 220V – 415V, 50-60 Hz
  2. Power capacity = 50A or up
  3. Wiring: Observe specified wiring requirements. The size of the wire should be at least 0.2″ (5.5 mm) in diameter.
  4. Grounding: In order to prevent accidents such as electric leakage, grounding work should be entrusted to an electric expert.

Machine dimensions and weight (26′ standard machine)

  • Main unit (supply table included): 313″ L (7960mm), 87″ W (2200mm), 59″ H (1550 mm)
  • Total weight: approximately 10,362 lbs (4700 Kg)
