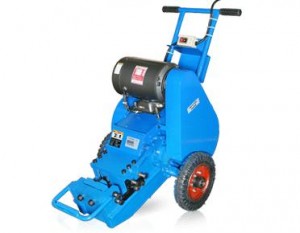

TYC-HD32C Mobile Cutter
Specifications
- Cutting capacity: #8 - #10
- Single phase 115V 60Hz
- Weight: 772 lbs
- Dimension - 46" (L) 25.5" (W) 31.4" (H)
No. of bars to be cut at one time
- #6 to #10 - 1
- #5 -2
- #4 - 3
- #3 - 4
Features
- Easy moving by wheels & easy loading into a vehicle
- All 4 edges of the cutting blade are usable
- Convenient selection for continuous or one-touch cutting type
- Compatible with power supply at home
- Powerful cutting performance

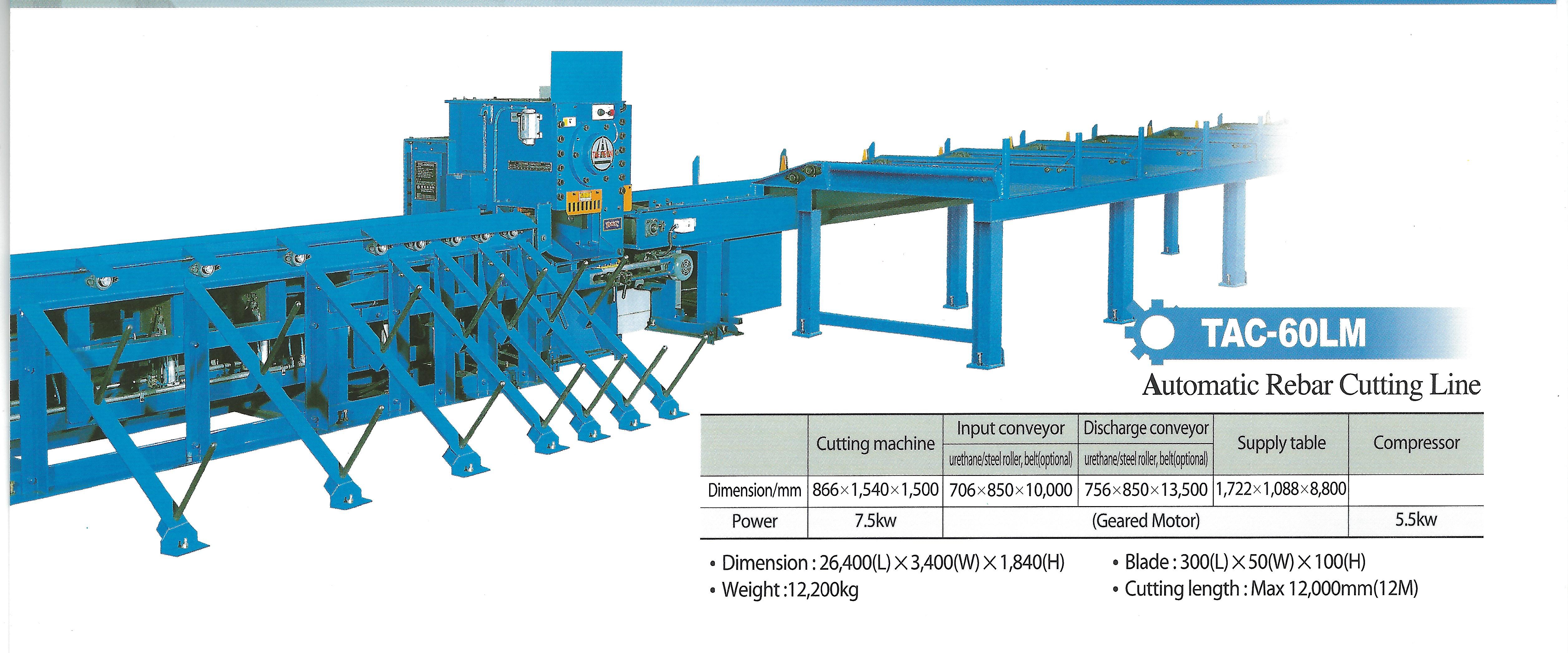

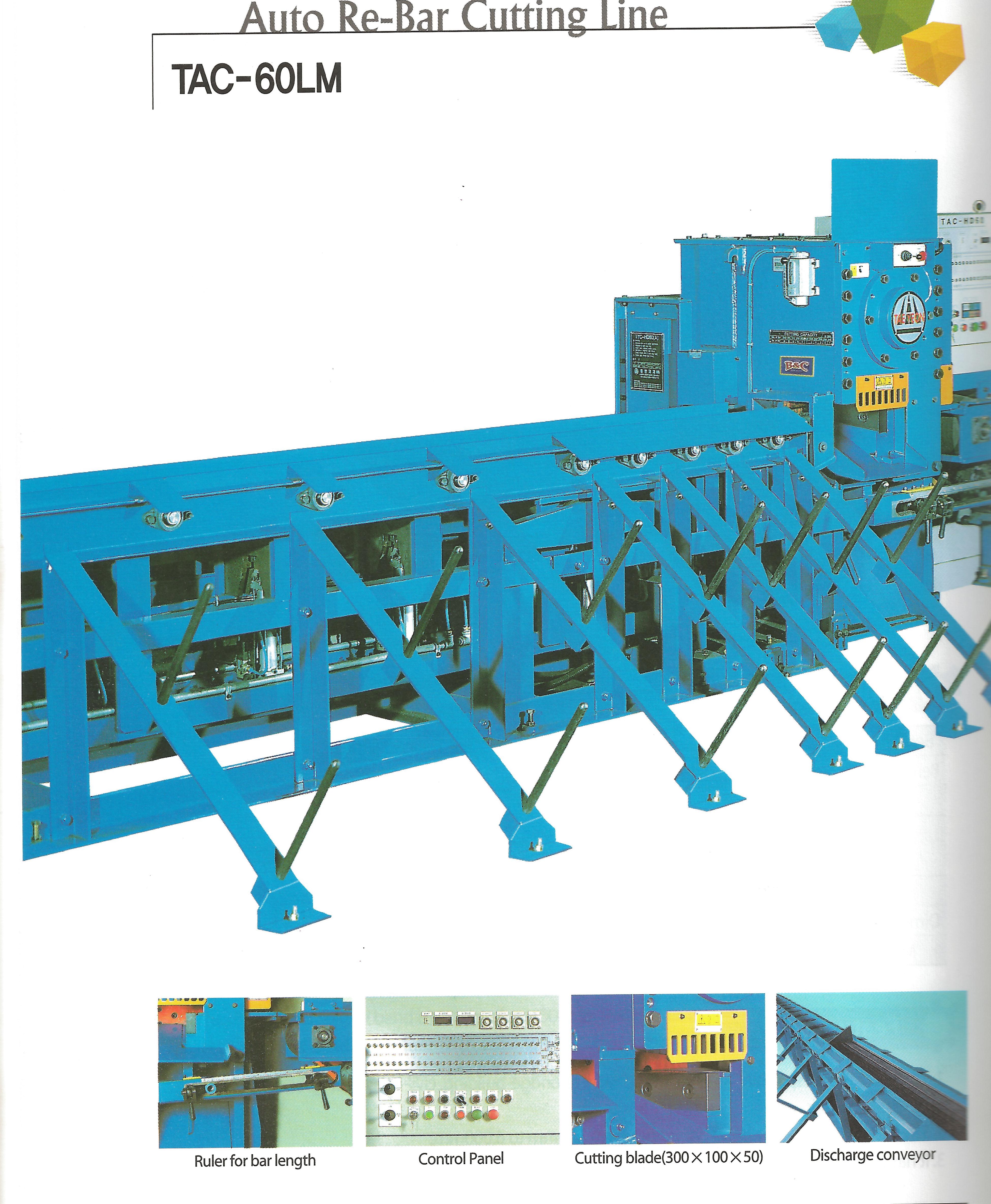

TAC-60LM Automatic Rebar Cutting Line
Bars to cut at a time (D/HD)
Specifications
Dimension: 1,039" x 134" x 72"
Blade: 11.8" x 3.9" x 2"
Weight: 26,840 lbs
Cutting lenght: 472"
...

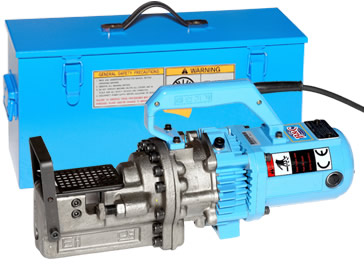

TYC-NHD25 Portable Cutter
Specifications:
- Cutting Capacity; diameter of applicable hard-steel bar; #3 ~ #8 grade 60
- Applicable steel bar; deformed steel bar
- Length of steel bar; unlimited
- Cutting Speed - 4 Seconds
- Single Phase 115V 60hz
- Weight – 55 lbs
- Dimension – 19.6"(L) 5.7"(W) 9.8"(H)
- Extra set of cutting blades Included
No. of Bars to be Cut at a Time:
- #7 ~ #8 - 1
- #5 ~ #6 - 1
- #4 - 2
- #3 - 3
Features:
- The machine weight is light (55 lbs). One person can hold and move it. The machine can be loaded into the trunk of a vehicle
- The cutting speed is very speedy ( one cut:4 seconds)
- All 4 edges of a cutting blade can be used.
- Less operation noise
- Electrically driven hydraulic system: available for using power supply at home.

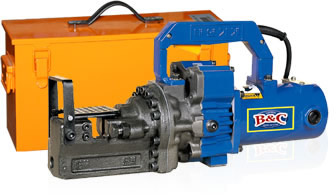

TYC-HD19A Portable Rebar Cutter
Specifications:
- Cutting Capacity - #6 (3/4" / 19mm)
- Cutting Speed - 4 Seconds
- Single Phase 115V 60hz
- Weight - 28LB
- Dimension - 17"(L) 4"(W) 8"(H)
- Extra 1 set of cutter blades Included
No. of Bars to be Cut at a Time:
| Model Number | No. of Bars |
| HD 19 | 1 |
| HD 16 | 1 |
| HD 13 | 2 |
| HD 10 | 2 |
Features:
- The tool weight is light(13.0 kg) & easy to carry about
- The cutting speed is very speedy(one cut:4Seconds) for HD 19
- The cutting performance is also very powerful (Bar diagram up to 19mm)
- All 4 edges of a cutting blade can be used
- Less operation noise
- Electrically driven hydraulic system: available for using power supply of home
TYC-HD42A Heavy Duty Cutter
Specifications:
- Cutting Capacity – diameter of applicable hard-steel bar; grade 60 #3 ~ #14 (0.375” ~ 1.65” in diameter)
- Applicable steel bar; deformed steel bar
- Length of steel bar; theoretically unlimited
- 3 Phase 220V 60hz
- Weight- 1843 lbs
- Dimension- 33"(L) 27"(W) 52"(H)
- Extra 1 set of cutter blades included
No. of Bars to Be Bent at a Time:
- #9 ~ #14 - 1
- #8 - 2
- #7 - 2
- #6 - 6
- #5 - 5
- #4 - 6
- #3- 8
Features:
- The electric motor is put inside the machine not to be exposed to rain.
- All the gears of the machine are in oil bathed lubrication. Therefore the machine is being operated smoothly and with less noise.
- All 4 edges of a cutting blade can be used.
- High safety by one touch cutting type.
TYC-D35 General Cutter
Specifications:
- Cutting Capacity- diameter of applicable hard-steel bar; grade6 #3 ~ #10 (0.375” ~ 1.26” in diameter)
- Applicable steel bar; deformed steel bar
- 3 Phase 220V 60hz
- Weight- 1355 lbs
- Dimension- 31.5"(L) 20.4"(W) 50"(H)
- Extra set of cutter blades included
No. of Bars to be Cut at a Time:
- #9 ~ #14 - 1
- #8 - 2
- #7 - 2
- #6 - 6
- #5 - 5
- #4 - 6
- #3 - 8
Features:
- Heavy duty cutting performance (bar diagram up to 32 mm).
- The electric motor is put inside the machine not to be exposed to rain.
- All the gears of the machine are in oil bathed lubrication. Therefore the machine is being operated smoothly and with less noise.
- All 4 edges of a cutting blade can be used ( bar diagram up: to 32 mm).
