TAB-HD25A Automatic Rebar Bending Line
Good for forming, stirrup & hoop.
Specifications
- Diameter of applicable steel bar: HD10 - HD25
- Steel bar material: SD400 / B4449 / ASTM A615
- Length of applicable steel bar:
- Max 26' (8 meter) - standard
- Max 33' (10 meter) - optional
| Steel bar diameter | 10 | 13 | 16 | 19 | 22 | 25 |
| Number of steel bars | 9 | 7 | 5 | 2 | 1 | 1 |
- Bending angle: 15 degrees (min) - 180 degrees (max)
- Processed inscribed diameter: 4D (D = steel bar diameter)
- Processed main axis diameter: 39
- Replaceable roller types: 62 diameter, 84 diameter
- Processed length (10 diameter): 9.44" (240 mm) min - 276" (7000 mm) max
Power supply
- AC 3-phase, 220V - 415V, 50-60 Hz
- Power capacity = 50A or up
- Wiring: Observe specified wiring requirements. The size of the wire should be at least 0.2" (5.5 mm) in diameter.
- Grounding: In order to prevent accidents such as electric leakage, grounding work should be entrusted to an electric expert.
Machine dimensions and weight (26' standard machine)
- Main unit (supply table included): 313" L (7960mm), 87" W (2200mm), 59" H (1550 mm)
- Total weight: approximately 10,362 lbs (4700 Kg)

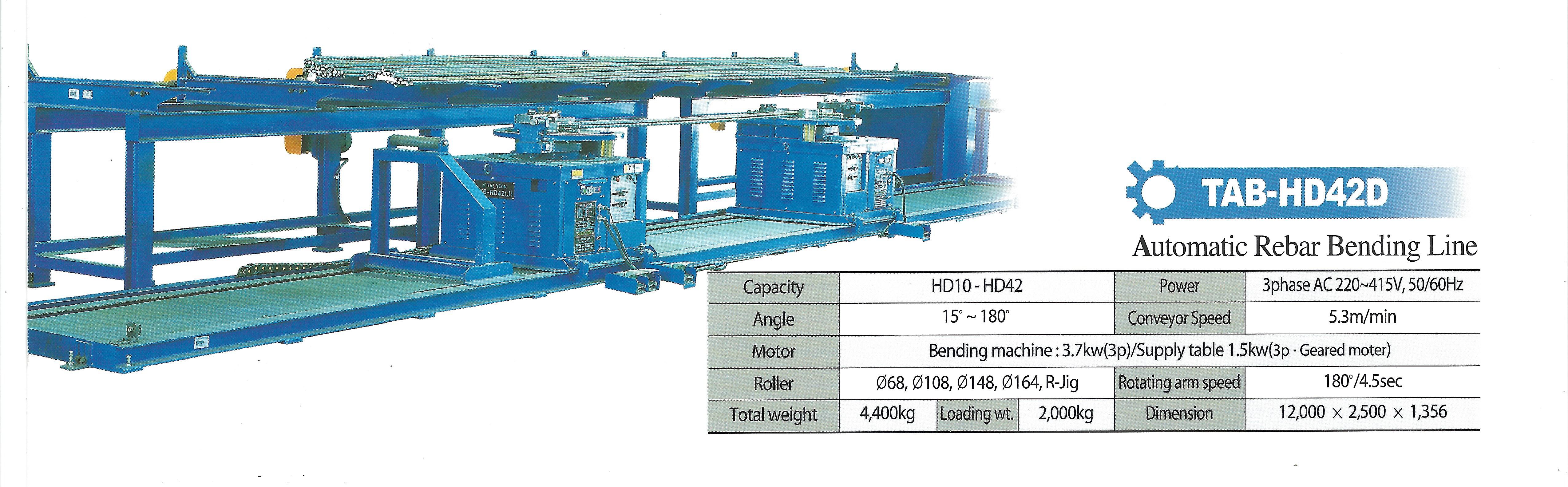

TAB-HD42D Automatic Rebar Bending Line
Specifications
- Diameter of applicable steel bar: HD10 - HD25
- Steel bar material: SD400 / B4449 / ASTM A615
- Length of applicable steel bar:
- Max 26' (8 meter) - standard
- Max 33' (10 meter) - optional
| Steel bar diameter | 10 | 13 | 16 | 19 | 22 | 25 |
| Number of steel bars | 9 | 7 | 5 | 2 | 1 | 1 |
- Bending angle: 15 degrees (min) - 180 degrees (max)
- Processed inscribed diameter: 4D (D = steel bar diameter)
- Processed main axis diameter: 39
- Replaceable roller types: 62 diameter, 84 diameter
- Processed length (10 diameter): 9.44" (240 mm) min - 276" (7000 mm) max
Power supply
- AC 3-phase, 220V - 415V, 50-60 Hz
- Power capacity = 50A or up
- Wiring: Observe specified wiring requirements. The size of the wire should be at least 0.2" (5.5 mm) in diameter.
- Grounding: In order to prevent accidents such as electric leakage, grounding work should be entrusted to an electric expert.
Machine dimensions and weight (26' standard machine)
- Main unit (supply table included): 313" L (7960mm), 87" W (2200mm), 59" H (1550 mm)
- Total weight: approximately 10,362 lbs (4700 Kg)
TYR-HD32A Spiral Bender
Specifications:
Bending Angle - 360 degree- Diameter of applicable hard-steel bar; grade 60 #3 ~ #10
- Applicable steel bar; deformed steel bar
- Diameter range of circle; 11.8” ~ 236”
- Three phase 220V 60 Hz
- Dimension - 33"(L) 33.3” (W) 36.2” (H)
- 1 foot pedal and machine cover included
Features:
- This machine is especially suitable for the work of bridge-building, civil engineering & also for land base piling work.
- The adoption of foot switch guarantee safe operation of the machine.
- By changing various types of rollers you can get larger radius bending
TYR-HD25B Spiral Bender
Specifications:
Bending Angle- 360 degree.- Bending Capacity – diameter of applicable hard-steel bar; grade 60 #3 ~ #8
- Applicable steel bar; deformed steel bar
- Min/Max diameter 5.1” – 98”
- Power- single phase 115V 60Hz
- Weight- 410 lbs
- Dimension- 23.6"(L) 21.6"(W) 20.2"(H)
- 1 foot pedal and machine cover included
Features:
- The adoption of foot switch guarantee safe operation of the machine.
- By changing various types of rollers you can get larger radius bending.
- Available for using the power supply at home.

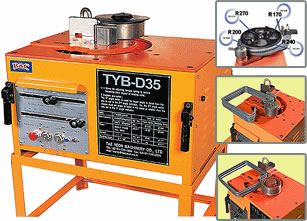

TYB-D35 General Bender
Specifications:
Bending Capacity - #10 (32mm) Bending Angle - 180 degree / 5 seconds.- Single phase 115V 60hz
- Weight - 397LB
- Dimension - 26"(L) 20"(W) 18"(H)
- 2 foot pedals, Machine Cover & Steel Stand Included.
No. of bars to be bend at a time:
- HD 32, 25 - 1
- HD 22, 19 – 2
- HD 16 – 3
- HD 13 – 4
- HD 10-6
Features:
- The power supply single phase 115 V
- The adoption of foot switch guarantee safe operation of the machine.
- The machine, being powered with 2 motors provide more powerful performance and it bend up to HD 32 mm.
- The machine weight is light (180kg). 2 persons can hold & move it. The machine can be loaded into the trunk of a vehicle.
- 2 different bent angles can be simultaneously bent with adoption of the dual angle adjustment device.
- By changing various type of rollers you can get larger radius bending.
- Available for using power supply at home.
- The bending process of stirrup & hoop allows minimum bend bar length 4-6 cm.
TYB-D26 Mini Bender
Specifications:
- Bending capacity – diameter of applicable hard-steel bar; grade 6 #3 ~ #8
- Applicable steel bar; deformed steel bar
- Length of steel bar: unlimited
- Single Phase 115V 60hz
- Weight – 165 lbs
- Dimension – 17.6"(L) 16.8"(W) 15.1"(H)
- Extra 2 foot pedals, machine cover and steel stand included.
No. of bars to be bend at a time:
- #6 ~ #8 - 1
- #5 - 2
- #4 - 4
- #3 - 5 Exceeding the above mentioned maximum limits may cause serious damage to the machine or injuries to people.
Features:
- The adoption of foot switch guarantee safe operation of the machine
- The machine weight is light (165 lbs). Two persons can hold and move it. The machine can be loaded into the trunk of a vehicle
- Two different bend angles can be simultaneously bent with adoption of the dual angle adjustment device.
- By changing various types of rollers you can get larger radius bending.
- Available for using power supply at home.
- The bending process of stirrup & hoop allows the minimum bend bar length 4-6 cm.
TYB-HD42A Heavy Duty Bender
Specifications:
-
Bending Capacity – up to grade 60 #14 (1.65”) - Bending Angle - 180 degree / 5 Seconds
- Motor – 7.5 HP
- 3 Phase 220V 60Hz
- Weight- 1562 lbs
- Dimension- 34.6"(L) 33.9"(W) 29.5"(H)
- 2 Foot pedals & Machine Cover Included
No. of bars to be bent at a time:
- #9 ~ #14 - 1
- #7 ~ #8 - 2
- #5 ~ #6 - 3
- #4 - 4
- #3 - 6 Exceeding the above mentioned maximum limits may cause serious damage to the machine or injuries to people.
Features:
- The machine is specially designed to be suitable for the work of civil engineering and bridge building.
- 2 different bent angles can be simultaneously bent w/ adoption of the dual angle adjustment device.
- The bending process of stirrup & hoop allows the minimum bend bar-end length 6-8 cms.
- The adoption of foot switch guarantee safe operation of the machine.
- By changing various types of rollers you can get larger radius bending.
