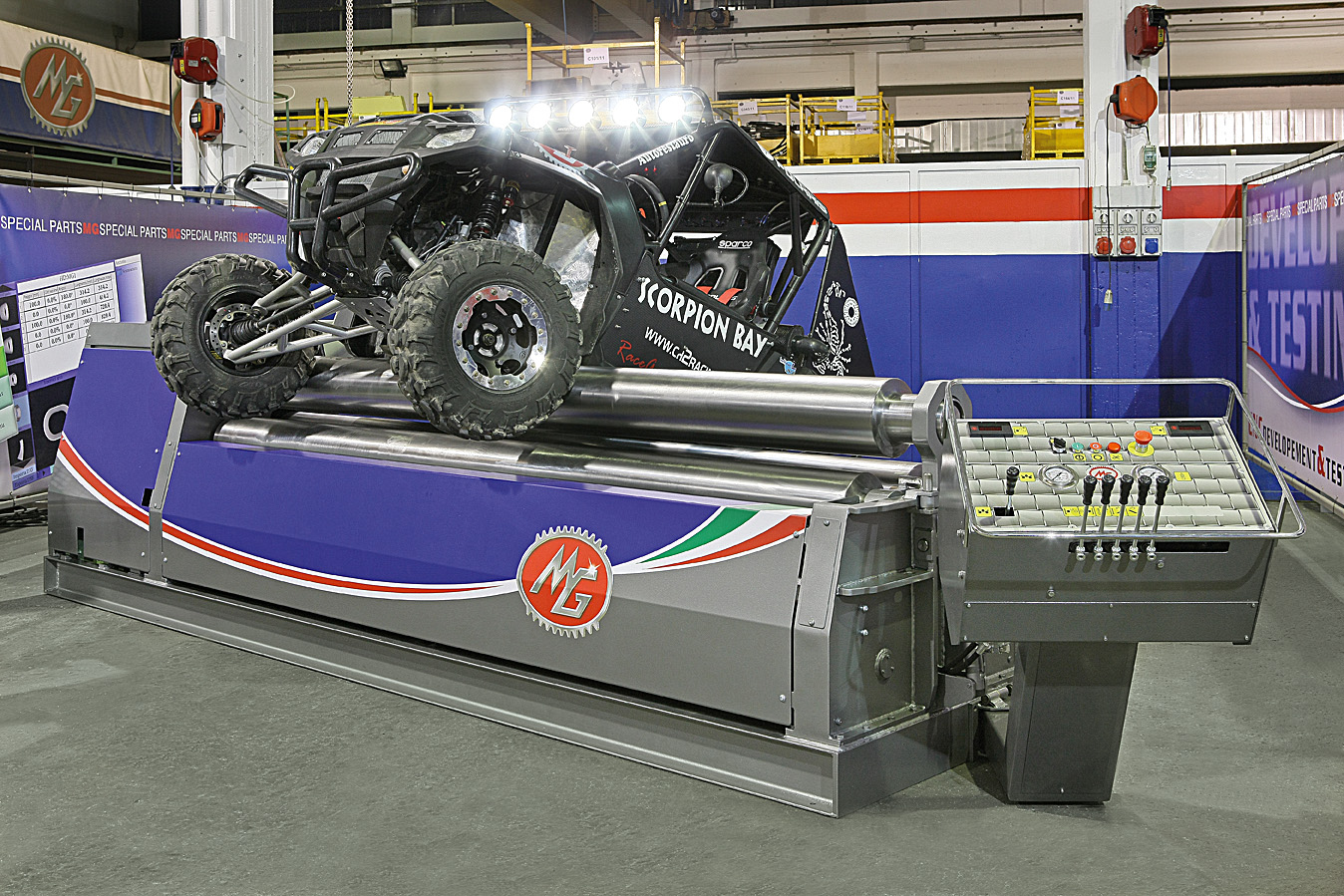

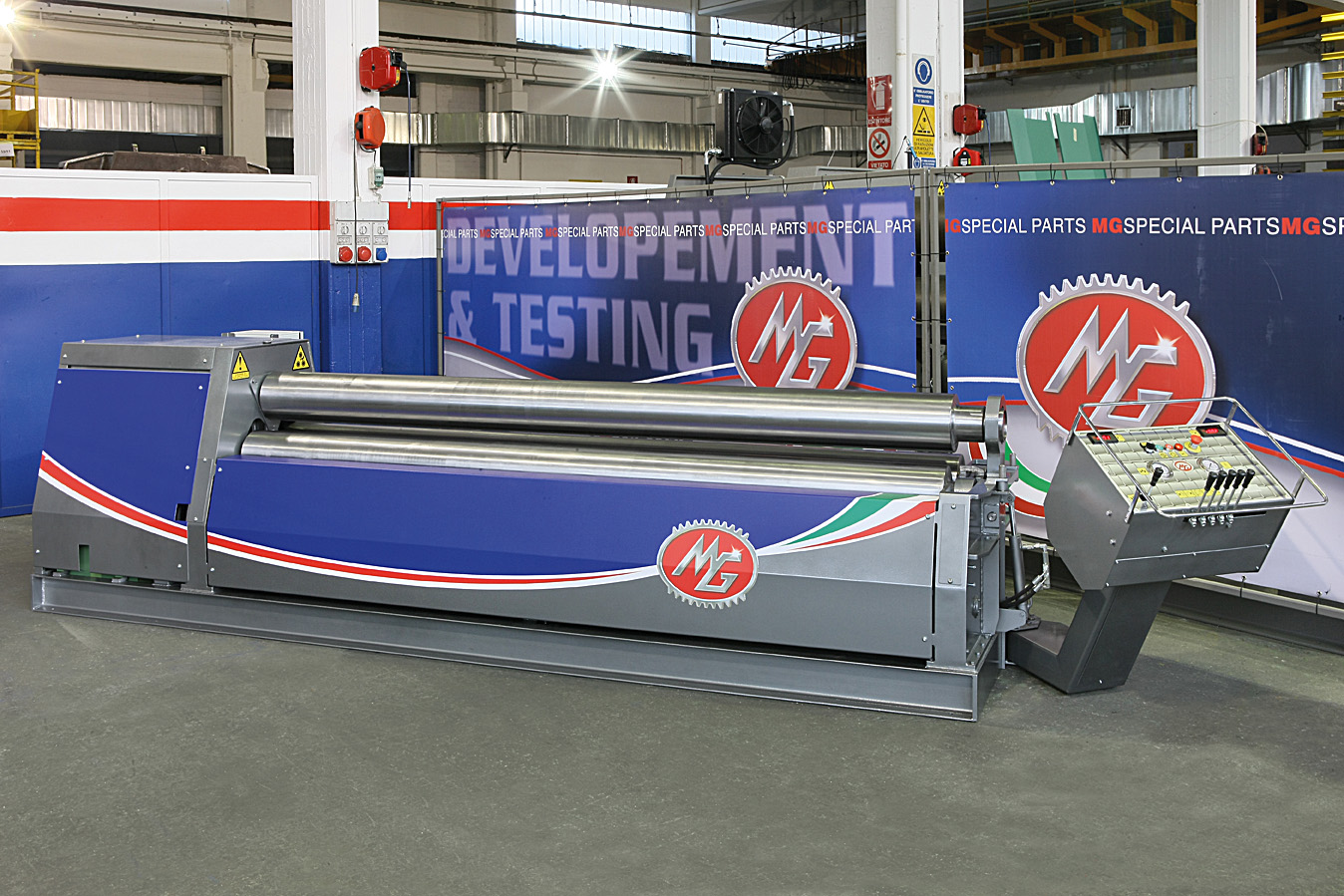

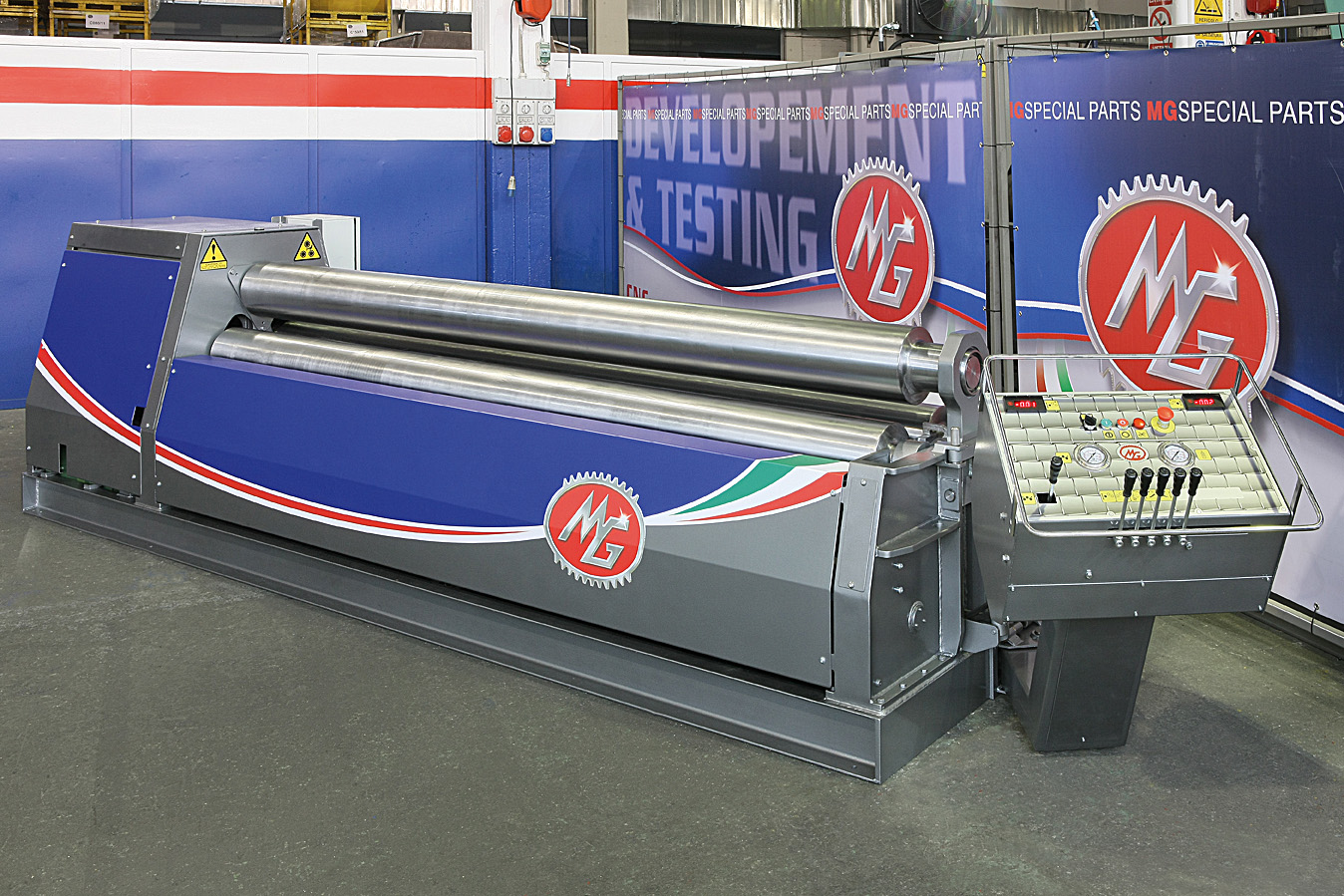

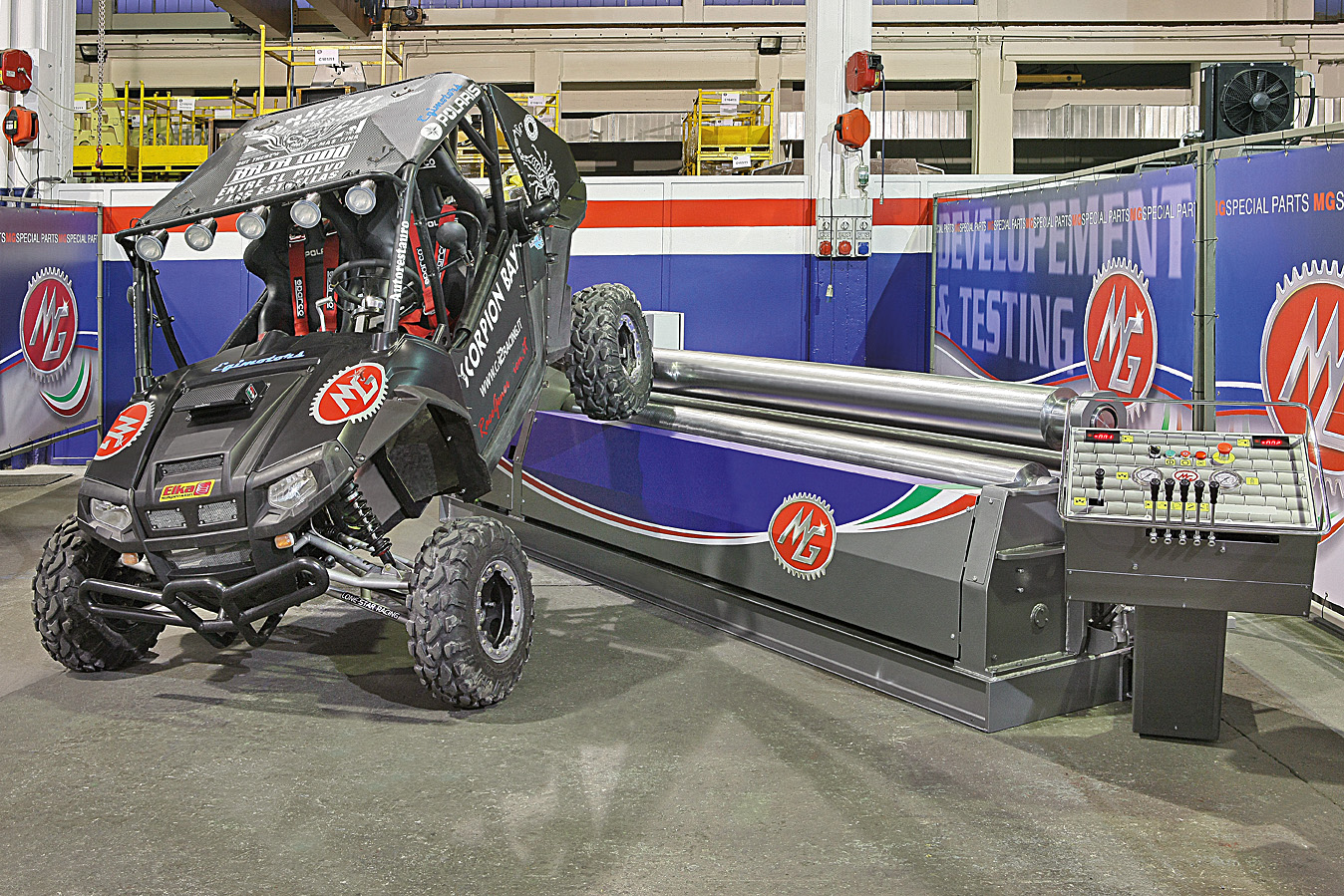

MH314C Plate Roll
Technical data
Installed power: 10 HP
Top roll diameter: 11.4”
Lower roll diameter: 10.3”
Side rolls diameter: 8.3”
Capacity
Working length: 122”
Max. rolling thickness: 9/16”
Max. pre-bend thickness: 1/2”
The max performances are referred to shells of diameter equal or larger than 3 times the top roll diameter and with material with a yield point 38,000 PSI.
Click HERE for additional information on the MH314C Plate roll...
Pictures and video on MG 32520Z test-rolling 10' plate
You don't get to see this every day... MG32520Z is rolling a 10' plate.
Here are some stats on this monster:- Weight: almost 400 tons / 800,000 lbs
- Machine capacity: 250 mm / 10", able to bend plate 250 mm / 10" thick on total length of 3,200 mm / 126".
- Top roll diameter: 1,400 mm / 55"
- Side rolls diameter: 1,200 mm / 47"
- Total length of machine: 13,700 mm / 45'
- Height: 7,700 mm / 25.3'
- Width: 7,100 mm / 23.3'
- Weight of top roll: 53 tons / 116,600 lbs
- Side rolls (2): 47 tons each / 103,400 lbs
- 17 trucks needed for the transport from Italy to Spain
