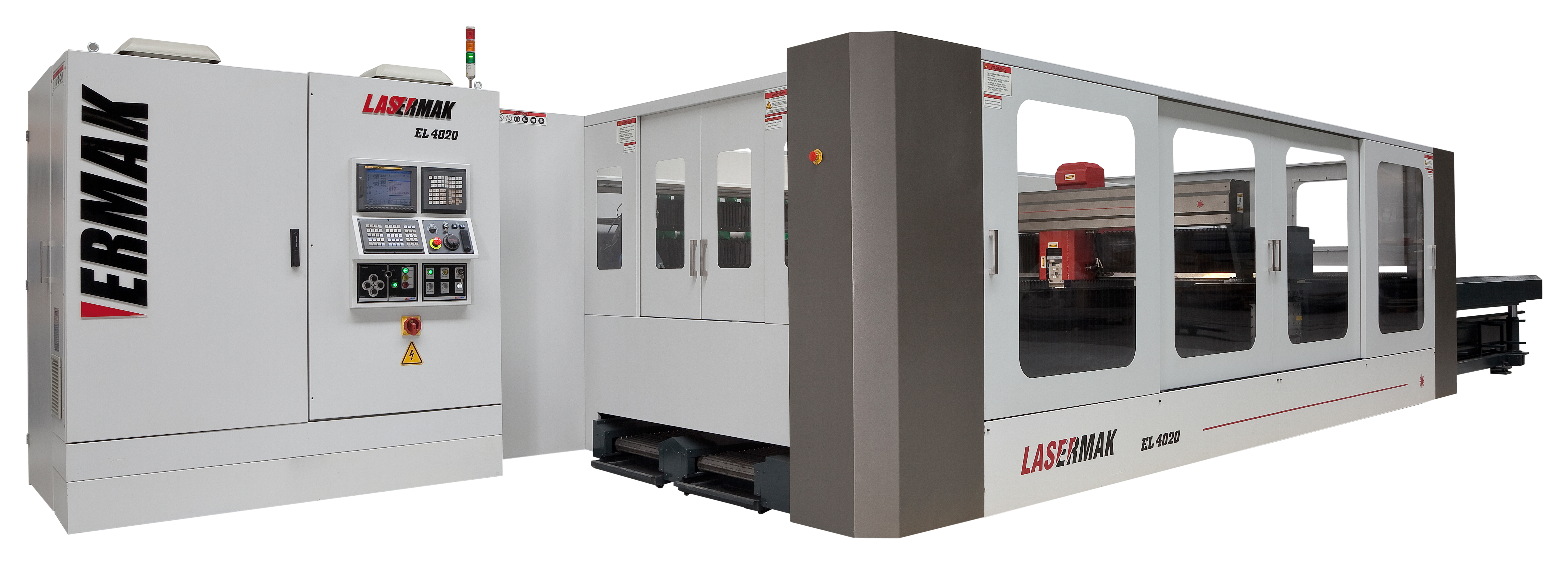

LASERMAK CO2 Flying Optic Laser Cutting Machine

LASERMAK reflects the latest technology and meets high expectations due to its high performance, high velocity, high accuracy, wide application range, and low running and maintenance costs.

LASERMAK has reliable, strong, mono block construction and is manufactured by combining ERMAKSAN’s 40 year old experience in the sector and use of top-quality components which are highly respected in the world market.

GENERAL SPECIFICATION

High Acceleration (X:2G; Y:3G)
High Speed 401” IPM (simultaneously)
Accuracy:
- Repetition: ± 0.015
- Positioning: ± 0.03

Dynamic and high precision axis with linear motors
Best cutting result with constant beam path and compensation system which is synchronized with X axis bridge
Low Energy and Gas Consumption
Excellent and compatible system package from FANUC (Laser resonator, controller and linear motors)
Compact exchangeable cartridge for 5” and 7.5”
Height control with capacitive nozzle sensor
High pressure cutting head (25 bar)
Ping-Pong function providing the shortest time for passing one hole to another
Lantek Expert CAD-CAM Software
Film Burning Feature
LASERMAK Automatic Cutting Technology Tables
3 Different Cutting Technologies for All Materials and Thicknesses
Advanced cutting features (Edge, Start-Up, Power Control Function)
Automatic nesting, machining, time and cost calculation
Automatic loading/unloading unit
Restart and retrace function
3 point reference sensor
Auto-focus cutting head
Part and scrap collecting conveyor
Reliable High/Low Pressure assist Gas System (two proportional valves)
Automatic Controlled Synchronized Suction System
Speed Filtered, Dried Air System
Precise temperature control for water cooling system

STANDARD EQUIPMENT

Machine Frame, 5 axes, X, Y, U, V axes, linear, motorized, Z axis servo motorized; High Speed Sensitive Laser Cutting Workbench.
Chiller Unit, Necessary for laser source, linear motors and all optical components, equipped with a special micron rated water filter.
CNC Control Unit, Ge – FANUC 16/LB 10.4″ LCO screen, all laser functions and maintenance screens, Ethernet RJ45, PCMCI exterior program storing, flash disk.

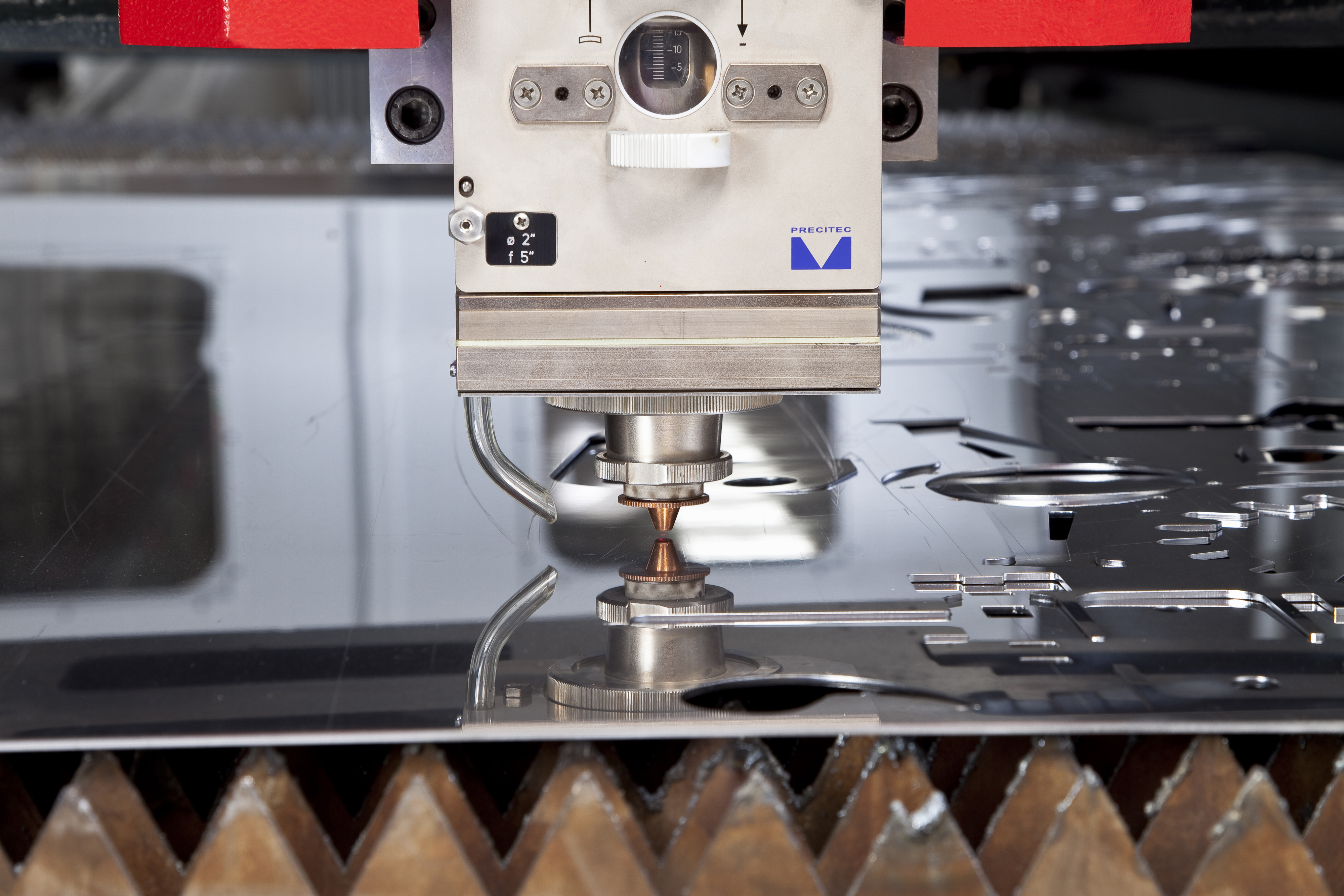

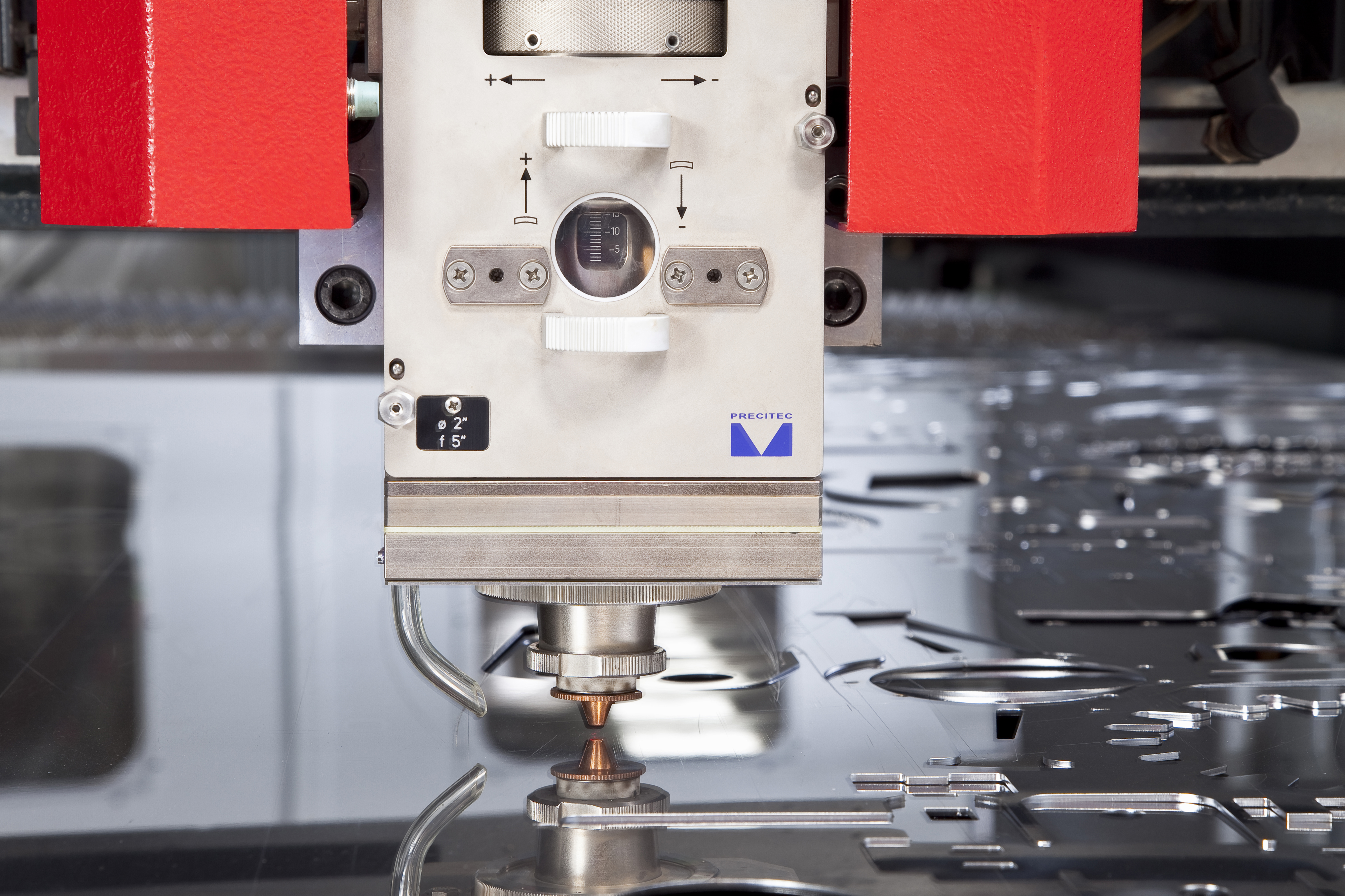

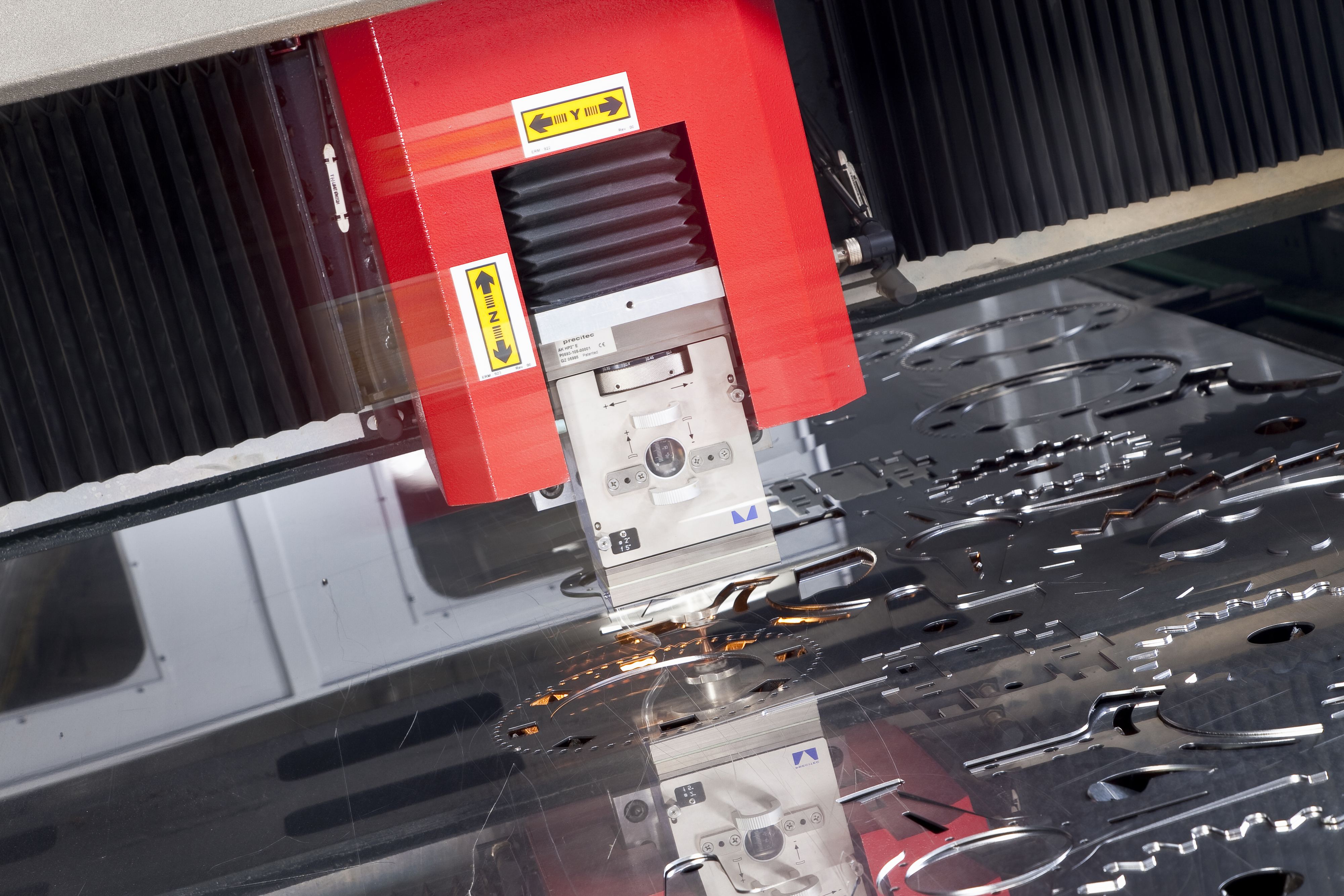

Cutting Head, Precitec HP2″ (4kW), HP1.5″ (2.5kW)
Easy Changeable Cartridge, Precitec 5″ and 7.5″.
Easy Changeable Lens Kit, ZnSe Positive Meniscus Lens

2” dia*7.5” FL (7.5” for 2” cutting head) – Edge thickness: 0.380”

2” dia*127mm FL (7.5” for 2” cutting head) – Edge thickness: .380”

1.5” dia*190mm FL (7.5” for 2” cutting head) – Edge thickness: .292”

1.5” dia*127mm FL (7.5” for 2” cutting head) – Edge thickness: .292”

Capacitive Approaching Controller, Sensitive Distance Control with Precitec EG8010 Adjust Box
Nozzle kit

.031”, 5 pieces

.039”, 5 pieces

.042”, 5 pieces

.059”, 5 pieces

.079”, 5 pieces

.098”, 5 pieces

.118”, 5 pieces

Optical Mirror Kit, 5 Pieces Folding Mirror
Cutting Head Ceramic Part Kit, 2 Pieces Ceramic Part
Beam Path System, Special Beam Path Protective Bellows
Gas and Air Control, Two Proportional Valve for Pressure Adjustment, Two Sensor to Control High and Low Pressure
Clean-Dry Air System, Chemical Air-Dryer with Active Carbonized Filter
Automatic Loading/Unloading Unit
Sheet Clamps, Four Holder Clamp on every table
Three Point Reference Sensor and Programming
Conveyor, part and Scrap Collecting Conveyor
Warning lamps
LANTEK CAD-CAM Software
Machine and Operator Safety System
PCMCI Flash Memory Card
Manuals for all LASERMAK equipment

OPTIONAL EQUIPMENT

3.75” Cutting Cartridge and 3.75” Lens (only for 1,5” cutting head)
10” Lens with Extension Adaptor
Motorized Cutting Head

Precitec HP 1,5” M(Z) – integrated Lens Break Sensor

Precitec HP 2” M(Z)

PS130 Piercing Sensor, Process Module (includes lens break and piercing sensors together – only for HP 1,5, HP 2” and HP2” (M(Z))
Protective glasses against LASERMAK CO₂ Laser Beam
Filter Unit
LASERMAK Spare Part Kit:

Ceramic Part – 2 pieces

Folding Mirror – 2 pieces

5” Lens – 2 pieces

7,5” Lens – 2 pieces

.039” nozzle – 10 pieces

.047” nozzle – 10 pieces

.059” nozzle – 10 pieces

.079” nozzle – 10 pieces

.096” nozzle – 10 pieces

.118” nozzle – 10 pieces
