ERMAKSAN HGS-A Hydraulic Swing Beam Shear

HGS-A Hydraulic Swing Beam Shear

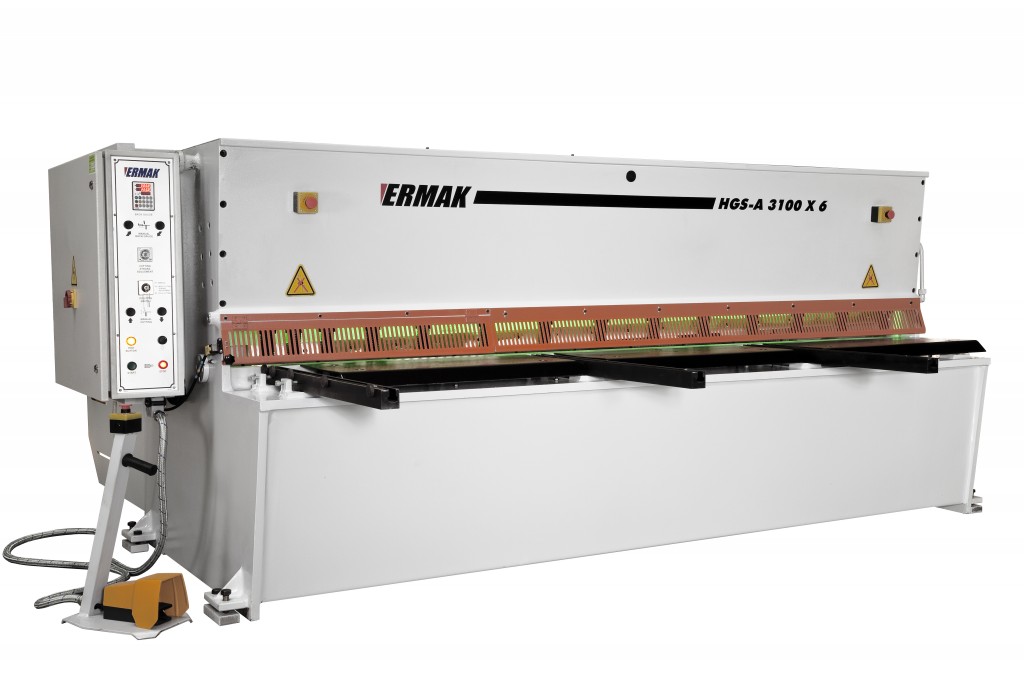

ERMAK HGS-A series are high performing and economic machines with modern design, strong steel weld construction frame and perfect cutting quality. Available dimensions are 102”, 122”, 161” and capacities are ¼” and 5/16”. Main frame and top beam are in box construction and highly resistant to twisting forces. Fast and precise blade gap adjustment system is placed on the right side of the machine. Blade gap adjustment for high quality cutting could be made without any step and from a single point. HGS series shears are the best performers in their category with 18-20 strokes per minute in full length.

Return of ram to TDC (top dead center) by dashpot working with pressurized gas.
The dashpots are placed at the top of the machine and don’t obstruct the cut sheets and additional systems like pneumatic sheet support system, conveyor system etc.
The tank is mobilized. Cleaning, equipment assembling/disassembling, integration of optional cooling system is easier.
Blade gap adjustment alternatives of .040”, .080”, .120”, .157”, .197”, .236” sheet thickness.

STANDARD EQUIPMENT

Mono block, welded steel frame rigid to deflection moment and high tensile with ST 44 A1 material,
ELGO 952 NC controller,
One-piece honed and chrome plated double acting powerful cylinders,
High-quality top and bottom blades;

Bottom: 4

Top: 2 cutting sides

Easily adjustable blade gap adjustment system from single point,
Bosch – Rexroth hydraulic system,
High pressurized silent ATOS pump,
Fast and powerful back gauge with 39” distance, moving ball-screwed shafts with automatic swing away feature,
Avoiding sheet sliding during cutting action, powerful hold-downs with maximum performance,
Cutting length adjustment allowing stroke adjustment for shorter sheets and shorten the cutting time,
Roller bearings on the table to help placing sheets to machine easily,
Front support arms with ruler and flip-stop,
Foot pedal available for single or continuous cutting,
Cutting line illumination,
Sick backside protectors

OPTIONAL EQUIPMENT

ERMAK CNC HGS Automatic Blade GAP and Automatic Target Stroke adjustment according to material, thickness and length by CYBELEC DNC61G cut,
Pneumatic sheet support system,
Pneumatic sheet unloading system,
Automatic stacking system,
Laser cutting line,
Finger protective light curtain,
Oil coolant,
Longer front arms or squaring arms,
Angular gauge

ELGO P9521 (Standard)

Manual operation mode
Single operation mode
Ability to make cutting program
Inch/mm conversion
99-step program
Parametric adjustments

LASER CUTTING LINE

LASER CUTTING LINE

With the help of laser cutting line, angled or drawn line cutting can be done easily and controllable (optional).

PNEUMATIC SYSTEM

Pneumatic sheet support system that provides the user an easy method of working is and optional function to protect the sheets from hanging down and improving cutting precision during cutting of long and thin sheets.

COLLAPSIBLE FRONT COVER

COLLAPSIBLE FRONT COVER

For safety reasons, front side of the hold-downs is closed with a protection cover; however, upon request 39”. part of the left side of this cover can be opened. With the help of this system, angled or drawn line cutting can be done easily and controllable.

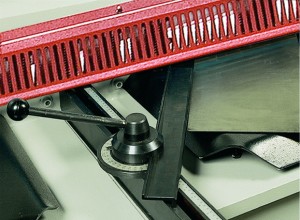

ANGLE GAUGE
