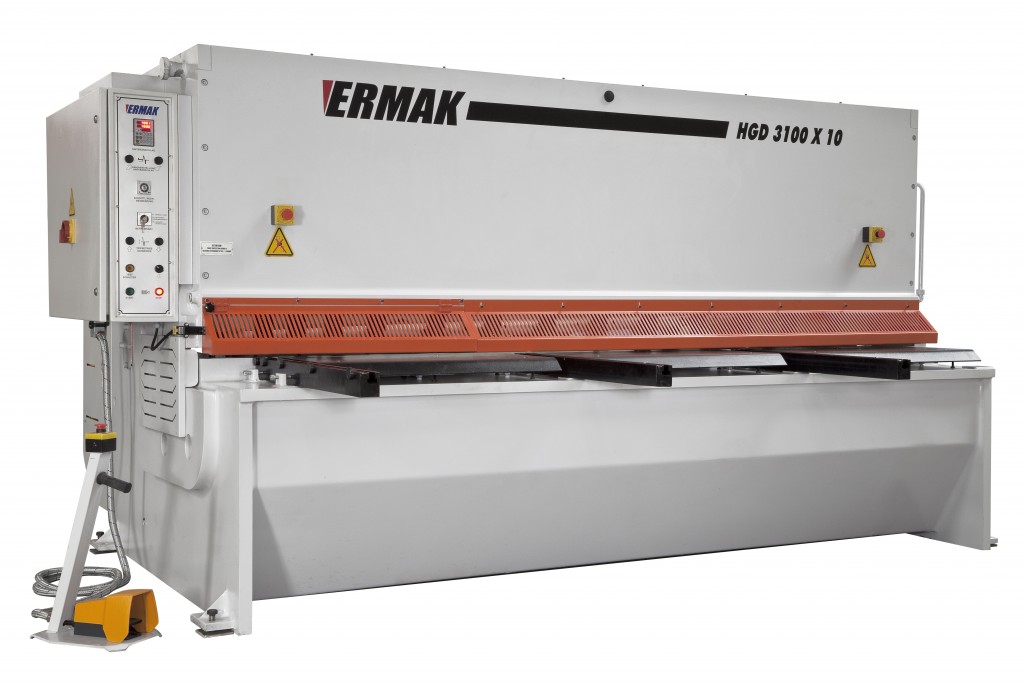

HGD - Hydraulic Swing Beam Shear

GENERAL SPECIFICATION

Ermaksan HGD series shears are designed for sheets 0.4 – 0.79”. They are built with high quality material and made to last several years in heavy duty production without any problem. Strong mono-block steel weld construction frame retains its rigidity even working in maximum capacity, thus providing a good quality and clean cut. The tough top and bottom blades are imported from Germany. Small cutting angle decrease twisting to minimum value in narrow sheet cutting.

STANDARD EQUIPMENT

Mono block, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
ELG0 9521 NC controller.
One-piece honed and chrome plated double acting powerful cylinders.
High quality top and bottom blades.

Bottom : 4

Top: 2 cutting sides.

Easily adjustable blade gap adjustment system from single point.
Bosch - Rexroth hydraulic system.
High pressurized silent Atos pump.
Fast and powerful back gauge with 39” distance, moving by ball screwed shafts, with automatic swing away feature.
Avoiding sheet sliding during cutting action, powerful hold-downs with maximum performance.
Cutting length adjustment allowing stroke adjustment for shorter sheets and to shorten the cutting time.
Roller bearings on the table help placing sheets to machine easily.
Front support arms with ruler and flip-stop.
Foot pedal available for single or continuous cutting.
Cutting line illumination.
Sick backside protections

OPTIONAL EQUIPMENT

ERMAK CNC HGD Automatic Blade GAP and Automatic Target Stroke adjustment according to material, thickness and length by Cybelec DNC61G cut
Pneumatic sheet support system.
Pneumatic sheet unloading system.
Automatic stacking system.
Laser cutting line.
Finger protective light curtain.
Oil coolant.
Longer front arms or squaring arm.
Angular gauge.

STANDARD CONTROLLER

ELGO P9521

Manual operation mode
Single operation mode
Ability to make cutting program
Inch/mm conversion
99 step program
Parametric adjustments

OPTIONAL CONTROLLER

CYBELEC DNC 61G Cut

Automatic calculations of automatic blade gap and stroke depth with hydraulic system and linear precision potentiometer feedback according to programmed material, thickness and length.
User friendly easy operation software.
5 pre-programmed material type
Stroke depth management by frequency distortion or potentiometer.
Automatic back gauge re-adjustment according to the blade gap.
Sequence repeat.
Sub programs and chain-programming.
Multi-processor designed using ASIC and SMD which provides full integration and high safety.
Keyboards with ergonomic buttons.
3 x 5” black-white LCD graphic screen (Visible area).
240 x 128 pixel automatic contrast adjustment.
Internal SRAM Memory.
Flash Memory, updating with RS232 (optional)
2 X Rs232 port (optional).
High Speed 250 KHz N2X axis with PID regulator and programmable resolution.
Inch/mm, Ton /Tens Conversion.
999 Programs Memory number.
Different criteria search programs (Thickness).
Alpha numerical programs code.
Working Time Calculations.
DNC to PC RS232 connections with CYBACK software.
Safety and Interactive Message.
Corrections Page.
Optional XI,X2 angular gauge.
Easy Cut Page.
Fly Cut operation modes (Serial Continuous Cutting Method)
