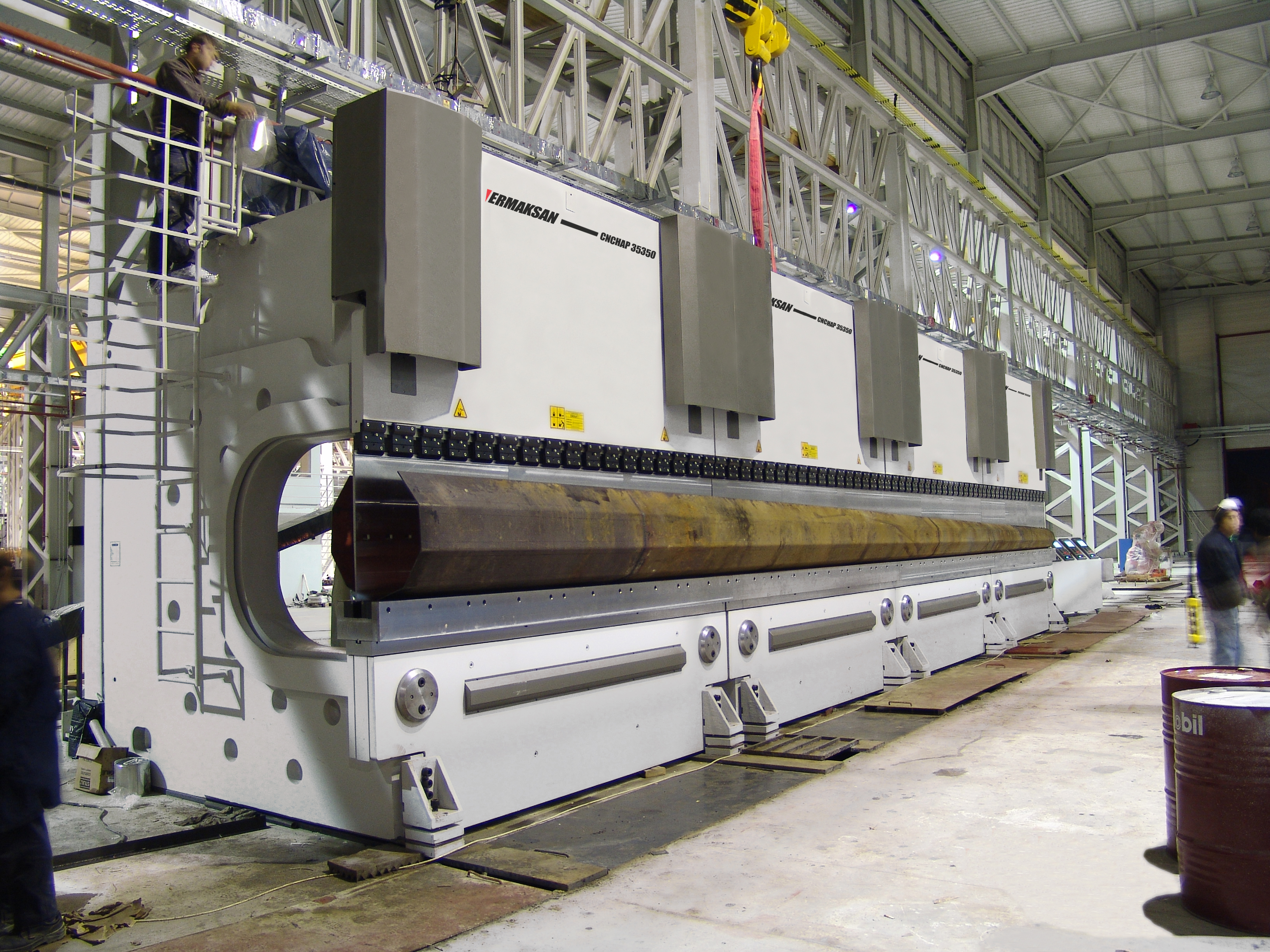

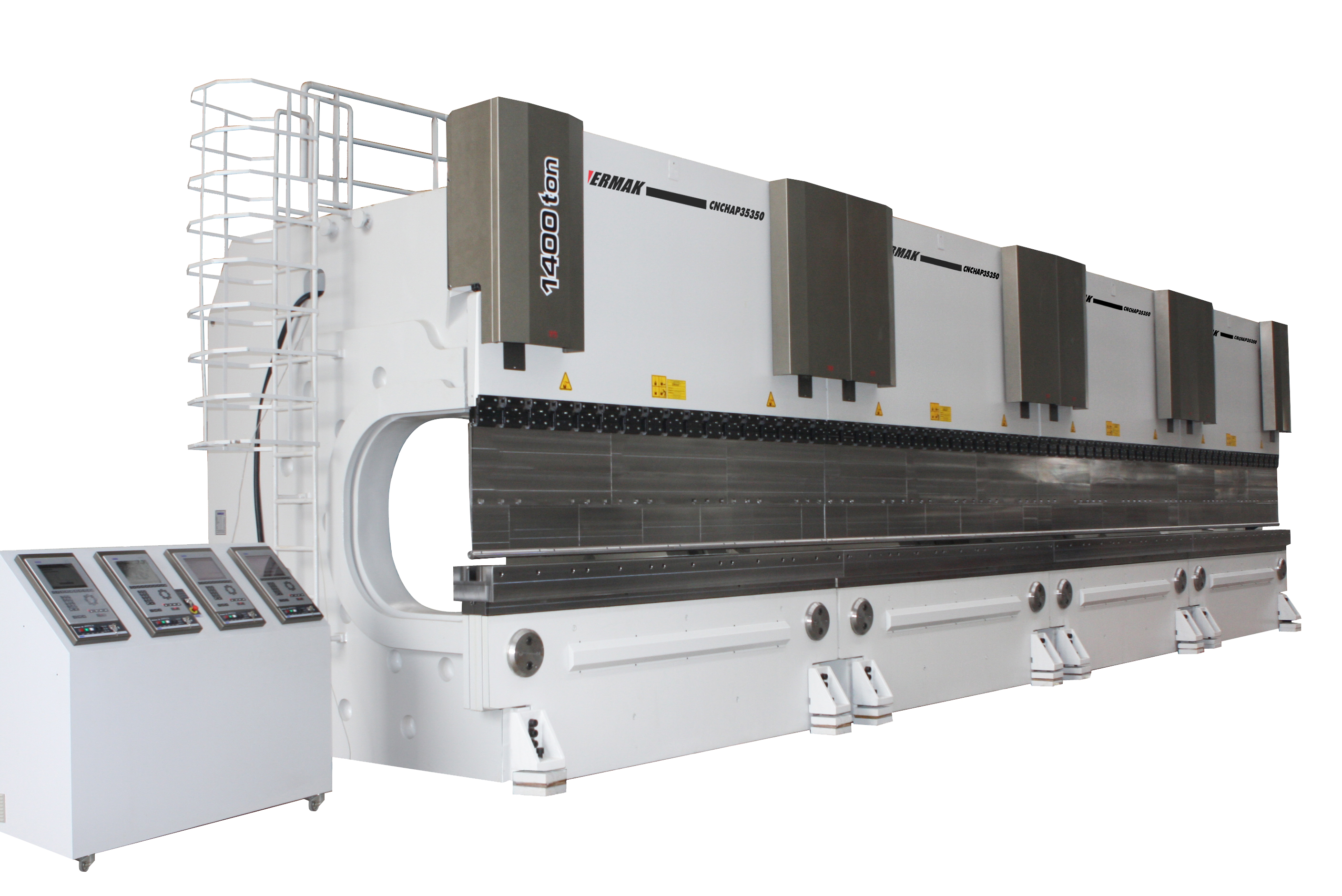

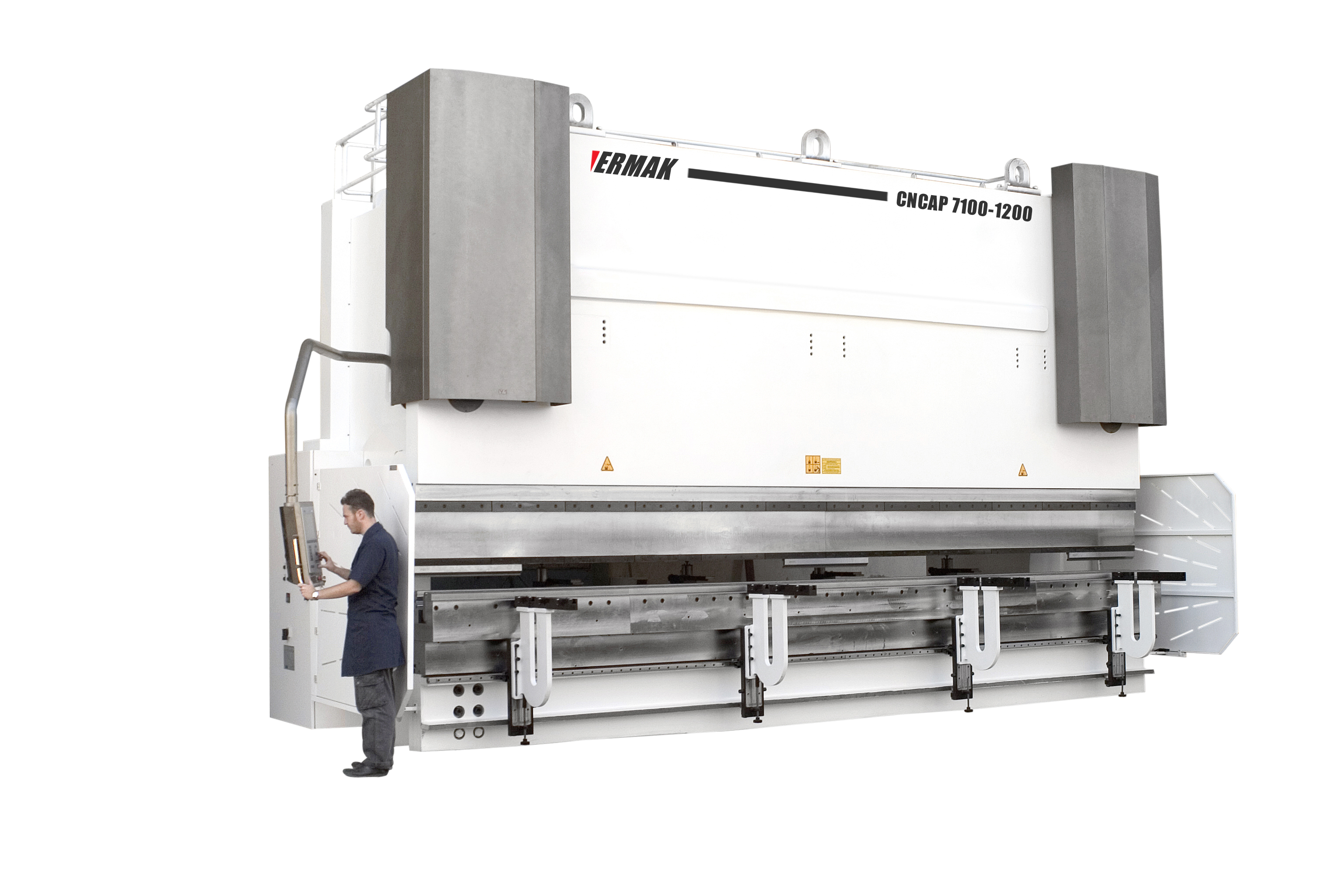

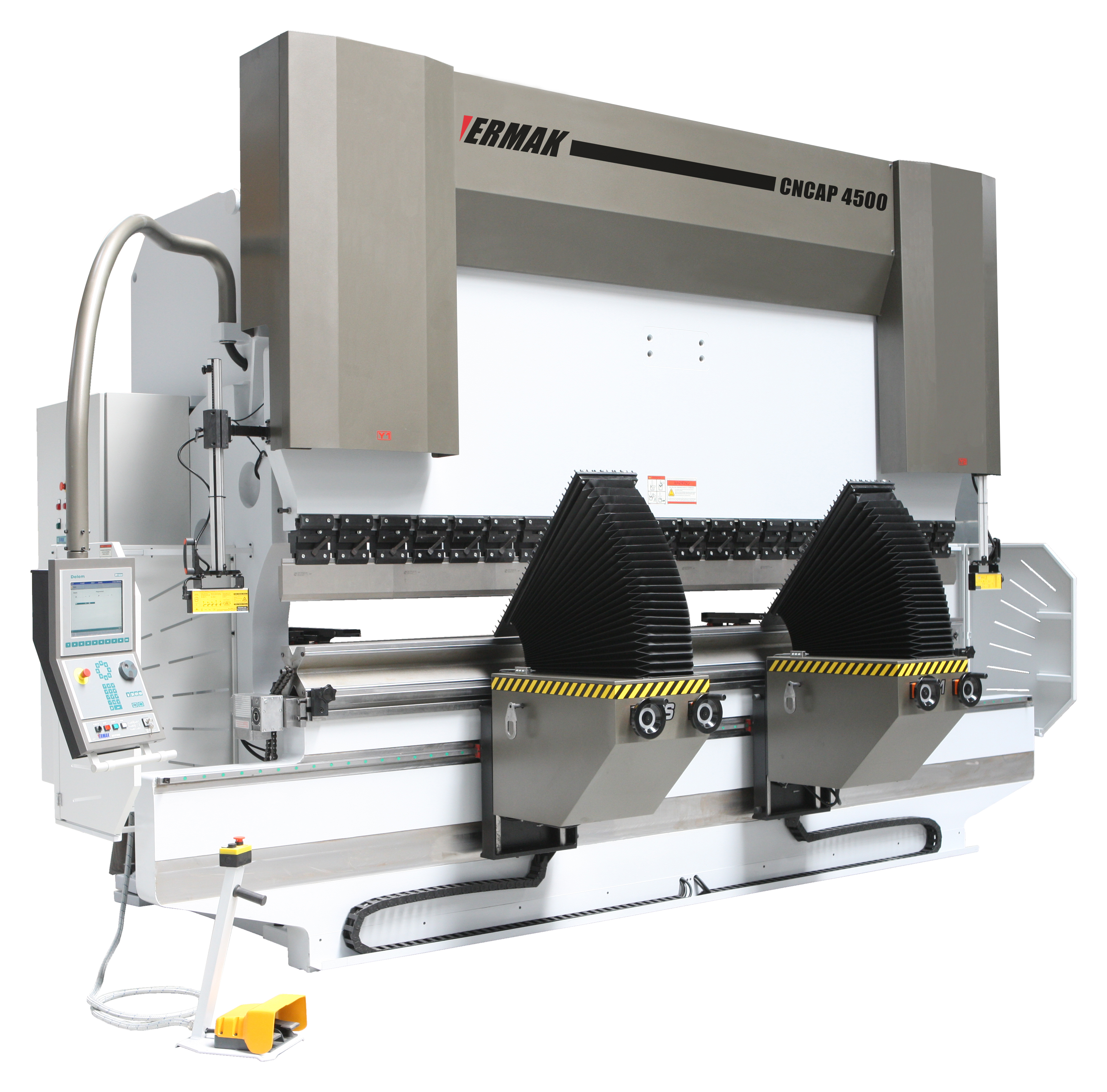

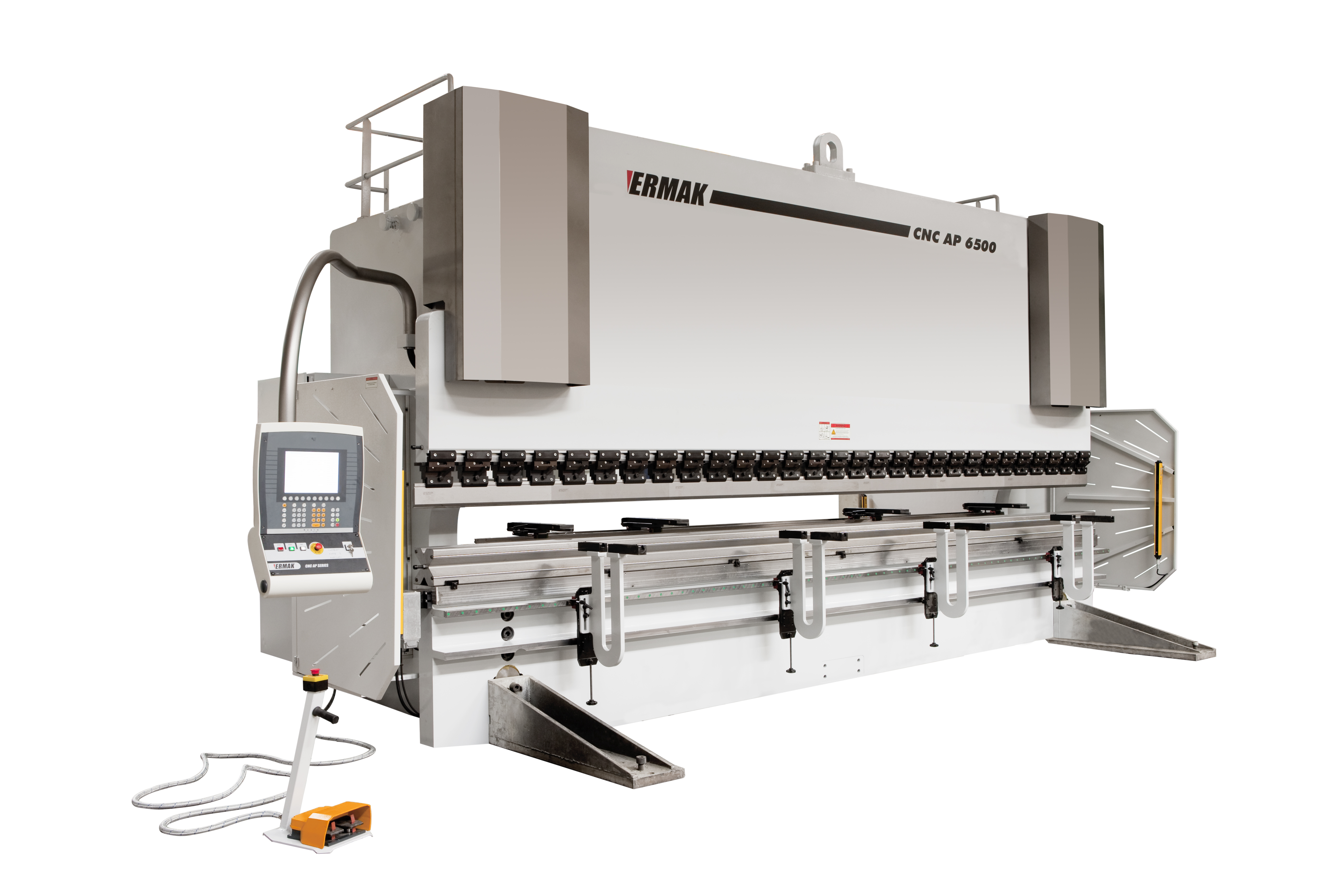

ERMAKSAN Heavy-Duty Special Design Press Brake

Ermaksan’s reliability, high quality products and advanced manufacturing techniques offers flexible and ideal solutions to the steadily changing world market, everyday developing technology and customers’ special demands. Ermaksan special press brakes fulfill the demands of the heavy-duty machine industry; transportation, windmills, power plants, and defense etc.

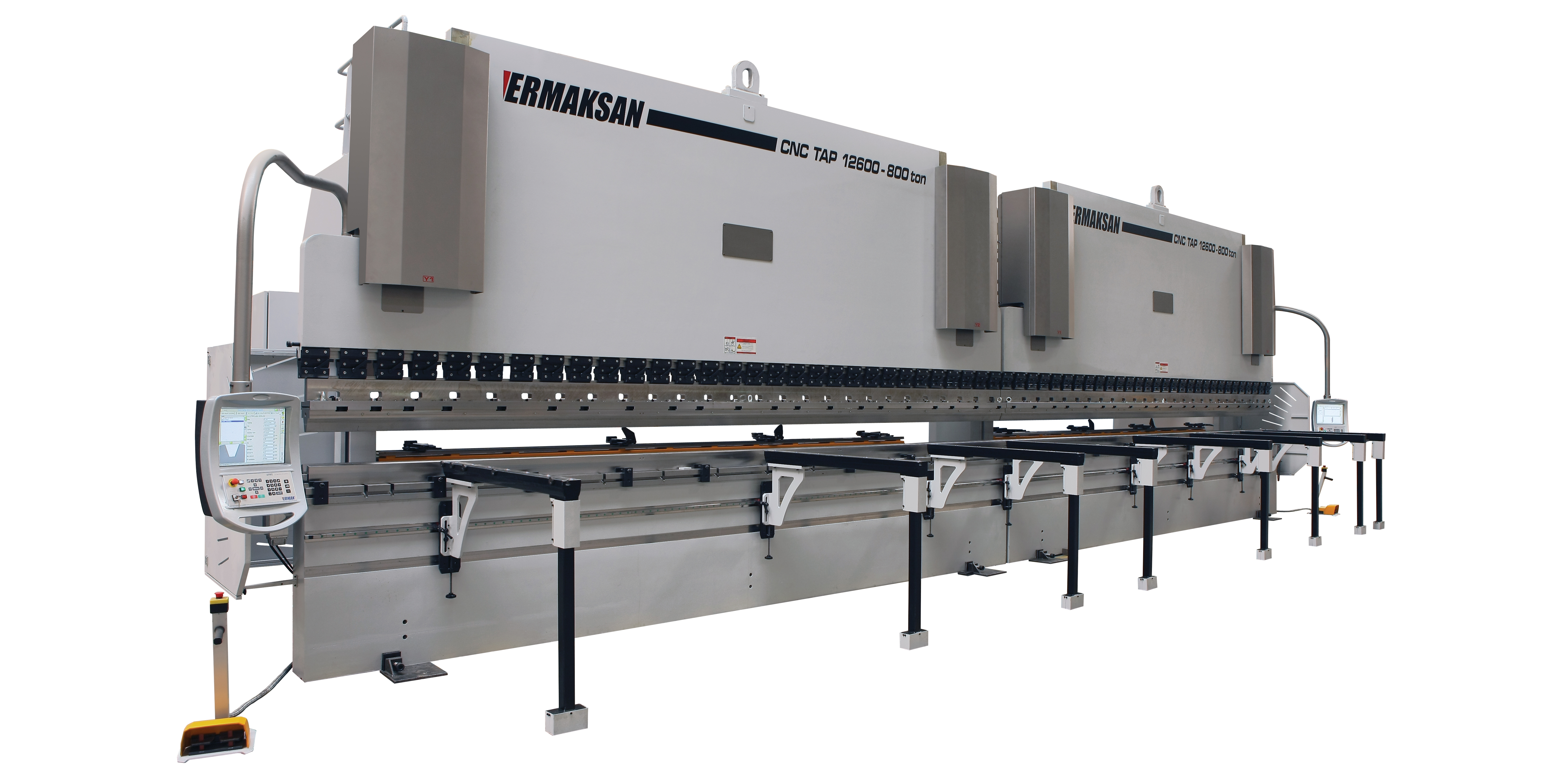

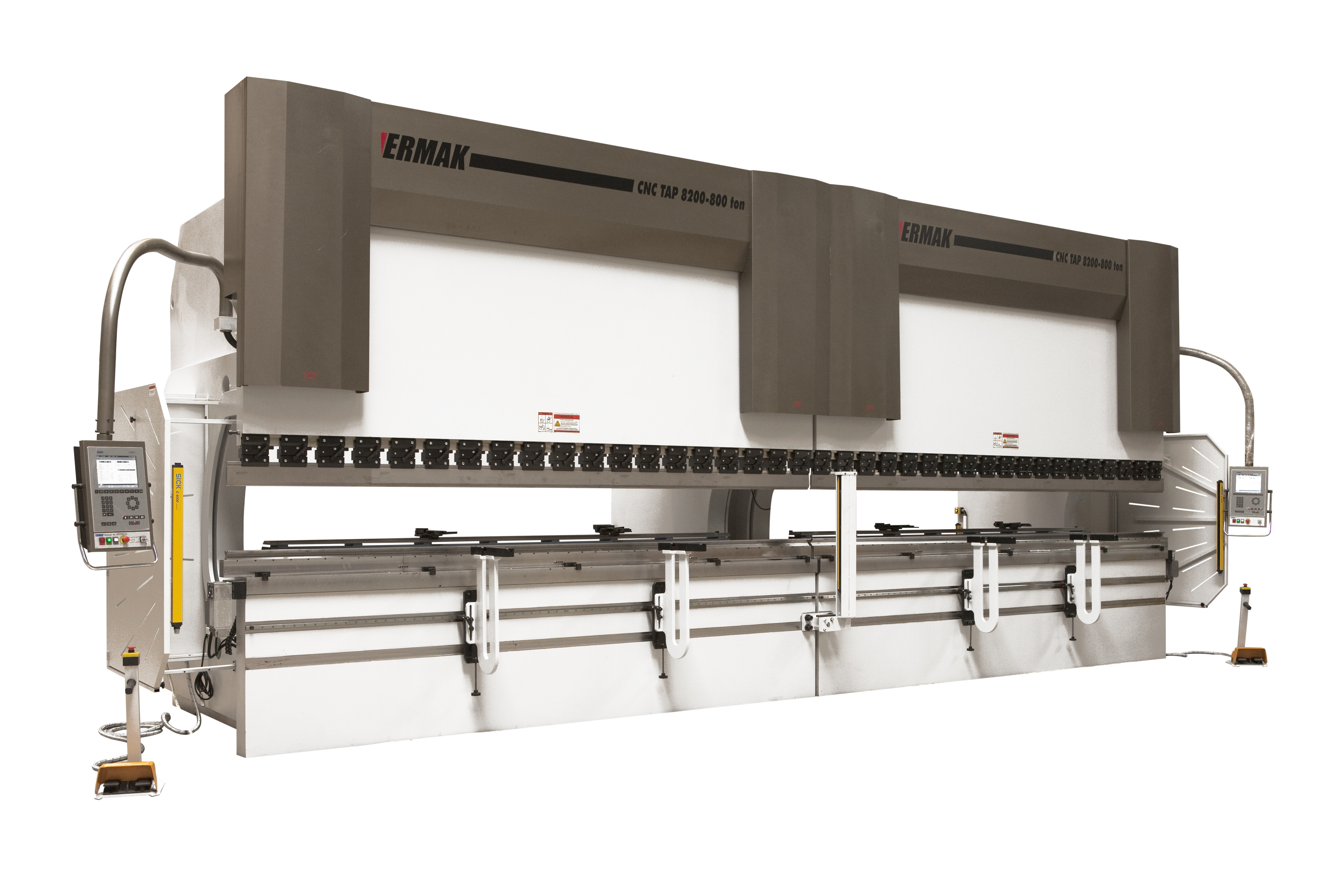

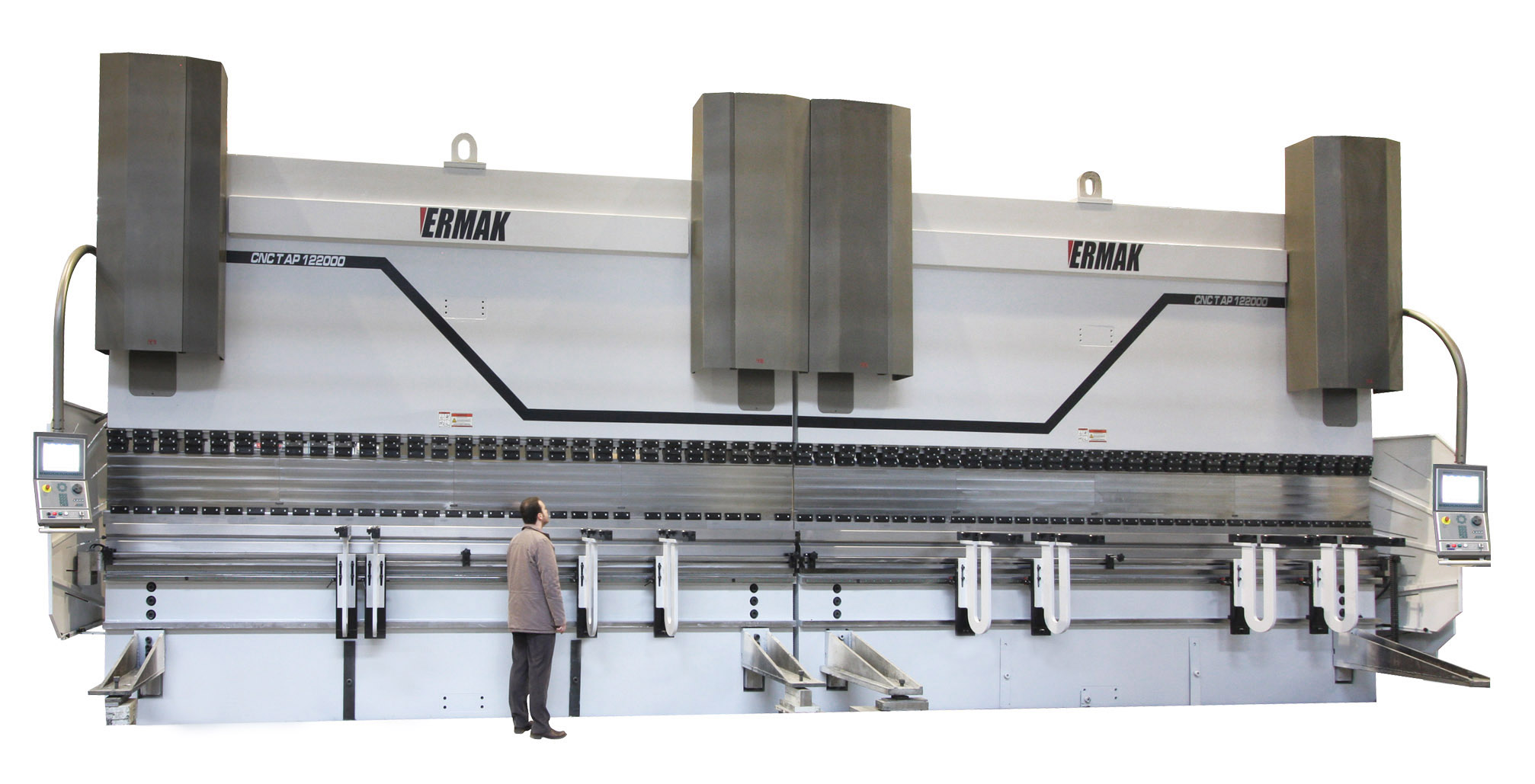

Tandem press brakes consist of at least two machines which are able to bend sheet and plate materials that are up to 32 meters on a single operation. These press brakes also have a feature of working together as well as working alone. Each machine is equipped with separate hydraulic, electrical and electronic equipment. All equipment used as standard and optional accessories are chosen from the latest technology using companies whose products are accepted worldwide.

User friendly and reliable working environment providing complex Hydraulic system which you can use free of problems for years.
Bending tools at various dimensions and special types.
High precision bending opportunity with adjustable tonnage, back gauge and stroke adjustment according to tooling and sheet metal specs.

SECURITY EQUIPMENT

Sick Front Guard
Real light guard
Sick laser front light guard
Lazer Safe front light guard
Akas Laser front light guard

STANDARD CONTROLLERS

CYBELEC MODEVA 10S 2D; General Specifications

2D DOS-based operating system,
Wide ergonomic keyboard and integrated track sensor,
6 context-sensitive function keys,
10″ TFT high resolution color screen,
Working memory flash 32 MB,
Integrated 3,5″ floppy disc (optional CD-ROM, LSI 20 or others),
Printer output and 2 RS232 port,
Ethernet RJ45 and 2 USB port,
VGA screen output,
Conversion inch/mm, ton/tons,
Measurement of speed, stopping time and leakage of the beam,
Management of CE safety cycles,
Interactive display of safety utilities and customized messages,
16 axes can be configured.

ER80 2D + Cad interface; General Specifications

ERMAK bending solutions are displayed graphically in 2D and indicate possible collisions with the tools or the machine frame,
Shows the position of the sheet within the tools,
Windows XP Embedded numerical control,
10-inchTFT color screen,
Simplified keyboard with large keys,
Efficient and comfortable 2D graphic software,
Standard offline 3D software and DXF or IGES conversion importing from CAD system simulate and display the feasibility of the product in 3D or 2D,
Display, product, tools and detect collisions,
Programing punch or Die, Bend functions key,
Possible to import a product created DXF or IGES file for use on a CAD system.

ER 90 3D; General Specifications

CNC Bending Simulations Work Center,
Graphic multi-axis numeric control in Windows style,
Advanced 3D features,
Simple and user friendly GUI (Graphical User Interface),
High-resolution LCD with 17” touch-screen,
Simulations of machine body, punch, dies, punch and die holders, barriers, doors, floor, back gauge, sheet pieces,
Real Tine Bending Screen,
Import of 3D parts from EBS CADCAM. SIMULATION and 2D/3D reproduction, in real time, of all of the bend phases.

DELEM DA66W; General Specifications
