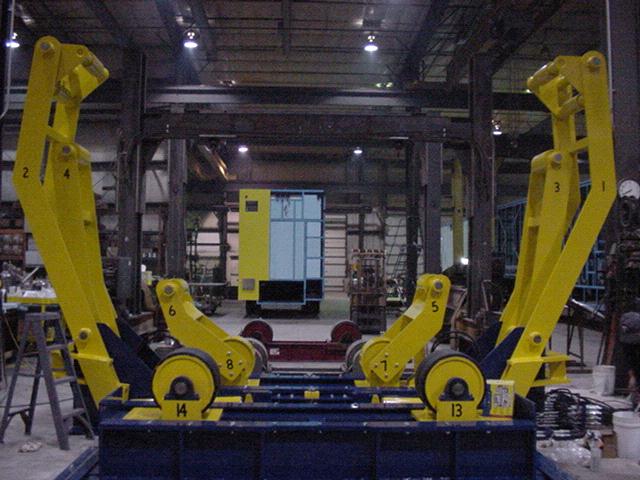

The EZ-Seam model WT 6/14, (worldwide patent pending), is a new and innovative solution specifically engineered to dramatically reduce the time required to perfectly position wind tower sections prior to the welding process.
Features & Capacity:
- Minimum shell OD: 6 ft
- Maximum shell OD: 14 ft
- Variable shell rotation speed according to welding needs
- Total tower section length up to 80 ft
- Total tower section weight up to 240,000 lbs.
Main benefits and advantages of EZ-Seam:
- Over 50% reduction of section positioning time

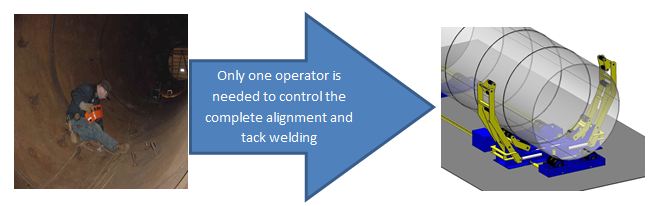

- Portable wireless remote, allowing complete control of the entire wind tower section positioning process by only ONE operator without the need to tie up valuable crane time!
- Effective and efficient longitudinal alignment thanks to the rail system used to guide both the “drive roll” unit and the “idler(s)” supporting the sections of the tower which have already been welded.
- Improved safety in the workplace thanks to the innovative design of the EZ-Seam, including the automation of the wind tower section alignment process, the ability to control all alignment operations from a single wireless remote control, simple and effective rail system structure, etc.. These features eliminate the need for less reliable, traditional tools such as sledges,wedges, chains, etc. in the section alignment operation.
- Significant reduction of “scrap” parts.
How EZ-Seam Works:

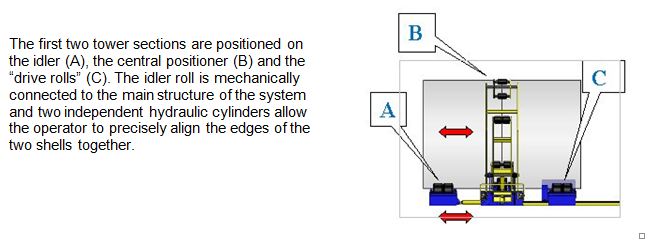

Step 1:

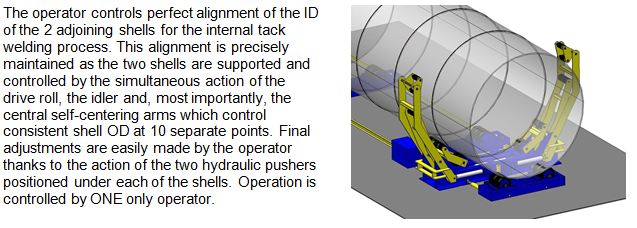

Step 2:

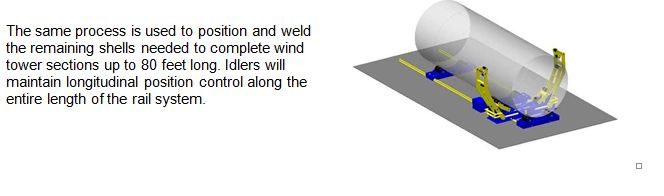

Step 3:
