FPP CNC Punch Press
Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily. Sheet processing can be done multi-directional and flexible until 0.2″ thickness. Hydraulic, electronic, electric and mechanic components that are respected with its high quality worldwide have been used on the machine.
Click FPP CNC Punch Press for brochure....
EKM Iron Worker
The EKM Iron Worker series is designed at CAD programs and is being produced by sensitive CNC workbenches. The EKM series include punching, flat shearing, angle shearing, bar shearing and notching stations. Each work station is equipped with specially designed hold-downs to ensure safety while providing precision and ease of use.
Click EKM Iron Worker for brochure...
EKN-6 Ermak Hydraulic Corner Notcher
Ermak EKN variable rake hydraulic corner notchers have a strong frame with its statically and dynamically rigid steel table and top beam material. T-slot top table allows precise cuttings and there is no need for alignment for different sheet thicknesses for automatic blade gap adjustment. EKN series perform frequent cutting via 4 hydraulic hold-down cylinders.
Click EKN-6 Ermak Hydraulic Corner Notcher for brochure...
CPP CNC Punch Press / Plasma press
Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily.
The combination of HiFocus sensitive plasma cutting and hydraulic punching on a very strong system gives a giant leap in production. Moving the sheet on X, Y axes on a stainless table with roller balls and clamps. Sheet can be cut as sensitive as required. Contour by servo motorized automatic height adjusted torch at plasma unit. After performing perforations or forming operations at the punch unit. It is capable of cutting and perforating processes at high speed and accuracy. It also has the capacity of high production and an alternative cutting process in comparison to other high cost cutting methods. Furthermore the production period will be shortened on these kinds of workstations because the material will not have to be transfer from one work station to another.
Click CPP Punch Press - Plasma Punch for brochure...
RPP CNC Rotative Punch Press
Strong mono block rigid C type body built up by stress relieved welded steel construction has high acceleration axes and designed to allow sheet loading from 3 sides ergonomically and the operation to be watched easily. Sheet processing can be done multi-directional and flexible until 0.2" thickness. Hydraulic, electronic, electric and mechanic components that are respected with its high quality worldwide have been used on the machine. In addition to its superior features and strong rigid body, main goal of ERMAK RPP series is high productivity and flexibility by means of angular moving T1, 12 top and bottom tool axes working synchronized with X, Y, C machine axes.
Click RPP CNC Rotative Punch Press for brochure....
LASERMAK Co2 Flying Optic Laser Cutting Machine
LASERMAK reflects the latest technology and meets high expectations due to its high performance, high velocity, high accuracy, wide application range, and low running and maintenance costs.
LASERMAK has reliable, strong, mono block construction and is manufactured by combining ERMAKSAN’s 40 year old experience in the sector and use of top-quality components which are highly respected in the world market.
Click LASERMAK CO2 Flying Optic Laser Cutting Machine for brochure....
FIBERMAK Fiber Optic Laser Cutting Machine
FIBERMAK transmits the laser beam onto the sheet metal by fiber cables and its cutting quality with high beam density is perfect on thin sheets compared to other alternatives. Fiber optic laser cutting technology proves high quality cuttings at very fast speeds. The energy consumption is 70% less compared to CO2 lasers. You’ll also benefit from easy cutting of reflecting materials such as aluminum, copper, brass etc. via low wavelength depending to its working principle.
Click FIBERMAK Fiber Optic Laser Cutting Machine for brochure....
EVOLUTION Hybrid Press Brakes
Fast, silent, precise, environmentally friendly and energy saving EVOLUTION series press brakes provides faultless bending of small parts even at different points by its high repetition and bending precision features.
Hydraulic pistons are being driven by AC servo motors without proportional direction valves on Evolution series hybrid press brakes. No need to positioning valves means more precision and less maintenance. No pressure loss. While the pump is working continuously all the day on ordinary press brakes, the Evolution Hybrid Press Brakes consumes energy only when the operator pushes the foot pedal and moves the top beam. As there is no pressure loss the energy i.e. bending power is at highest level. Also the oil level is reduced with 80%. There is no oil heat up and the oil has long life-time.
Click Evolution Hybrid Press Brakes for brochure....
HGS-A Hydraulic Swing Beam Shear
ERMAK HGS-A series are high performing and economic machines with modern design, strong steel weld construction frame and perfect cutting quality.
Available dimensions are 102”, 122”, 161” and capacities are ¼” and 5/16”. Main frame and top beam are in box construction and highly resistant to twisting forces. Fast and precise blade gap adjustment system is placed on the right side of the machine. Blade gap adjustment for high quality cutting could be made without any step and from a single point. HGS series shears are the best performers in their category with 18-20 strokes per minute in full length.
Click HGS-A Hydraulic Swing Beam Shear for brochure....
HGD Hydraulic Swing Beam Shear
Ermaksan HGD series shears are designed for sheets 0.4 – 0.79”. They are built with high quality material and made to last several years in heavy duty production without any problem. Strong mono-block steel weld construction frame retains its rigidity even working in maximum capacity, thus providing a good quality and clean cut.
The tough top and bottom blades are imported from Germany. Small cutting angle decrease twisting to minimum value in narrow sheet cutting.
Click HGD Hydraulic Swing Beam Shear for brochure....
Click

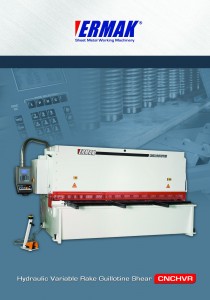

CNC-HVR Hydraulic Variable Rake Guillotine Shear
ERMAK CNC-HVR angle adjustable hydraulic guillotine shears are strong and easy to use machines which are able to cut any type of sheet with the best quality and speed.
Machines can be programmed easily with the use of dialog programs and CYBELEC control units. When the type, thickness and length of the sheet is entered to the controller, the machine calculates and adjusts blade gap adjustment, back gauge distance, cutting length and cutting angle automatically.
Cutting angle adjustment is done automatically according to sheet thickness, so that the shortest stroke is used during the cutting of thin sheets.
Click CNCHVR Hydraulic Variable Rake Guillotine Shear for brochure....
CNC-CAP Synchronized Hydraulic Press Brake
SPEED BEND
- The precision repeatability performance of these machines is achieved by synchronizing the hydraulic cylinders with the use of advanced proportional valve control,
- With automatic indexing of the axes at the start of running process, calibration is provided,
- 4 Data inputs of material thickness, type and length through a user friendly software enables the control to calculate and provide the following
- Determination of bending power required for each stroke,
- Graphical display of the unfolding of bending parts,
- Positioning of the back gauge for each step of the bending program,
- Determination of the most practical bending sequence
- Automatic calculation of top beam stroke for bending angle,
- Adaptation condition of tools and work pieces,
- Storage of programs with alpha-numerical names and recalling,
- Programmable bending speeds,
- Manuel, semi-automatic or automatic working modes.
- Upper beam tilting for conical bending.
- Graphical display of potential interferences between material, tools and the machine.

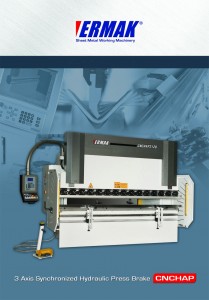

CNC-HAP 3 Axis Hydraulic Press Brake
POWER-BEND series is developed for works with wide variety and where production speed is important. Syncro system is provided by synchronized cylinders with proportional valve technology like in SPEED-BEND machines. And this means bending angle with maximum precision. CYBELEC DNC 60PS is used in POWER-BEND. This controllers' easy usage, high capacity and fast processing power, durability and service network all around the world provides your machine high performance.Click CNCHAP 3 Axis Synchronized Hydraulic Press Brake for brochure.
...

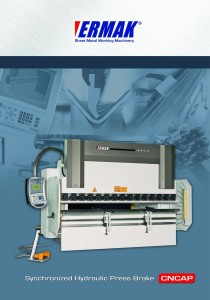

CNC-AP Synchronized Hydraulic Press Brake
- The precision repeatability performance of these machines is achieved by synchronizing the hydraulic cylinders with the use of advanced proportional valve control,
- With automatic indexing of the axes at the start of running process, calibration is provided,
- 4 Data inputs of material thickness, type and length through a user friendly software enables the control to calculate and provide the following:
- Determination of bending power required for each stroke,
- Graphical display of the unfolding of bending parts,
- Positioning of the back gauge for each step of the bending program,
- Determination of the most practical bending sequence,
- Automatic calculation of top beam stroke for bending angle,
- Adaptation condition of tools and work pieces,
- Storage of programs with alpha-numerical names and recalling,
- Programmable bending speeds,
- Manuel, semi-automatic or automatic working modes,
- Upper beam tilting for conical bending.
