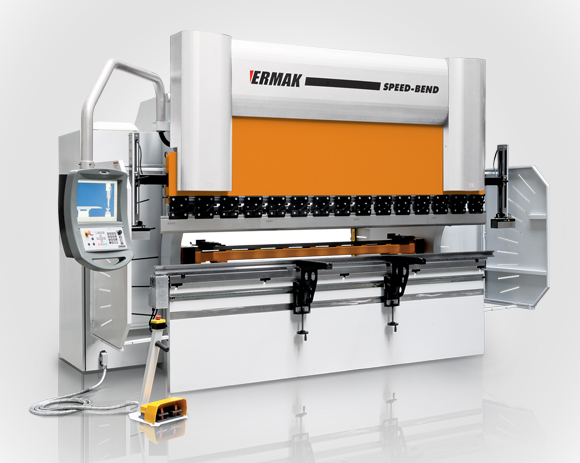

If the speed, versatility and the high productivity is what you are looking, the right choice is SPEED-BEND series by ERMAKSAN with high quality and competitive price range for all your applications.
Speed-bend offers you faster fall down, bending and return speeds with high stroke and daylight features for wider range of sheet metal bending applications. Beside of these important features, Speed-bend brings you the latest technology bending controllers for all type of bending applications with its 3D Graphical Touch Screen ER-90 Controller as standard.
Moreover, Speed-bend will come with most popular bottom and top tooling with QUICK RELEASE CLAMPING feature decreasing the set-up time. Also, Standard Motorized Crowning will give you more precise bending jobs with your applications.
Last but not least, Standard 2-Axis servo driven Backgauge by ERMAKSAN will make your jobs easier with its heavy duty, robust, fast and precise construction designed and produced for your needs. Also, for complex parts, SPEED-BEND can be configured up to 6 axis CNC controlled backgauge
GENERAL SPECIFICATIONS
- Standard 4 axis Y1, Y2, X and R
- Perfectly designed mono-block steel frame
- Higher Daylight and Stroke with faster bending speeds
- CNC Controlled Motorized Crowning
- Heavy duty and fast AC Servo Motor Driven X-R Back gauge
- Sliding Front Support Arms with linear guides
- Full-length ground and hardened top and bottom tools with Quick Release Clamping
- Programmable bending speeds,
- Manual, semi-automatic or automatic working modes.
- Storage of programs with alpha-numerical names,
- The accuracy and repeatability performance of Speed-Bend is achieved by synchronizing the hydraulic cylinders with the use of advanced proportional valve control,
- The calibration of Speed-Bend is provided with automatic indexing of the axes at the start of running process.
- 3D Color Graphical Touch screen Controller & Offline Software
- Entering the data of material thickness, material type, bending length and angles through a user friendly software enables the control to calculate and provide the following
- Determination of bending power required for each stroke,
- Graphical display of the unfolded parts,
- Positioning of the back gauge for each step of the bending program,
- Determination of optimized bending sequence
- Automatic calculation of top beam stroke for each bending step,
- Graphical display of collision between material, tools and the machine
STANDARD FEATURES
- Mono block, welded steel frame rigid to deflection and high tensile with ST44 Al material.
- Four axes (Yl,Y2, X and R)
- Standard graphic controllers can be selected from: ER-90 3D Color Graphical Touch Screen Controller with offline Software, Cybelec Mod Eva 12 S 3D Color graphics with PC 1200 Offline Software, Delem DA66W 2D with colored graphics.
- Back gauge system with X+R axis driven by AC servo motors on linear bearings
- HOERBIGER servo hydraulic system
- CNC controlled motorized anti-deflection system
- Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand.
- Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm sections).
- Amada Promecam type tool holding system with quick release
- Ergonomic user friendly, pendant control panel
- Back light safety guards (Category-4)
- Front Side Covers with safety switches,
- Synchronization of Yl +Y2 axis provided by linear encoders with 0.01 tolerances.
- Back gauge fingers move along linear bearings with 0.01 tolerances.
- Foot pedal conforming to CE regulation.
- Sliding Front arms with T slot and mm/inch rulers,
- Throat depth 15.7″ (400 mm).
OPTIONALS
- Graphic controllers; Cybelec ModEva l5S 3D, Delem 69W 3D
- Z1+Z2 axis.
- Xl+X2axis.
- R1+R2 axis.
- SICK C4000 Advanced Finger Protections 14 mm (Easy Programable Sick Soft with PC: Blanking. Reduced Resolution, Cascade working etc) ,(category-4).
- Laser protection system for die area, LAZERSAFE PCSS, AKAS LASER SAFETY IILC2000, AKAS LASER SAFETY IILC2000 (MOTORIZED), Sick V 4000 (Camera based system ), DSP PHOTO ELECTRIC LASER SAFETY
- Laser angle measurement system, with data M Cobra Lazer Check System
- LAZERSAFE – IMG 100 ANGLE MEASUREMENT SYSTEM
- Hydraulic and Dynamic-Hydraulic Anti-Deflection ( Crowning ) features,
- ERMAK Pneumatic top tool clamping system.
- Hydraulic top and bottom tool clamping system,
- CNC Controlled Bending Aids (AP3+AP4 axis).
- Hydraulic oil coolant and oil heaters
- Automatic slide greasing system.
- Special throat depth 19.7″, 24.6″ or 29.5″ (500, 600 or 750 mm),
- Special top and bottom tools
- Software options EBS ERMAK Bending System Software for ER-90, Cybelec PC 1200, Cybelec CYCAD 2D DXF Convertion , Delem V-Bend / V-DXF / V-Draw, Delem PROFILE W2D/W3D.
- Tandem Applications
- Tool Cabinets
STANDARD CONTROLLERS

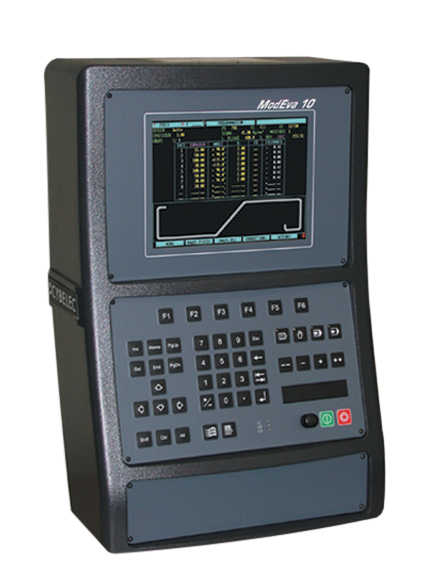

CYBELEC ModEva 10 General Specifications
- 2D DOS-based operating system.
- Wide ergonomie keyboard and integrated track sensor.
- 6 context-sensitive function keys.
- 10” TFT high resolution color screen
- Working memory flash 32 MB
- Integrated 3,5″ floppy disc (optional CD-ROM, LSI 20 or others)
- Printer output and 2 RS232 port.
- Ethernet RJ45 and 2 USB port,
- VGA screen output,
- Conversion inch/mm, ton/tons,
- Measurement of speed, stopping time and leakage of the beam.
- Management of CE safety cycles.
- Interactive display of safety utilities and customized messages.
- 16 axes could be configured.
- 2D Windows* operating system. Stable

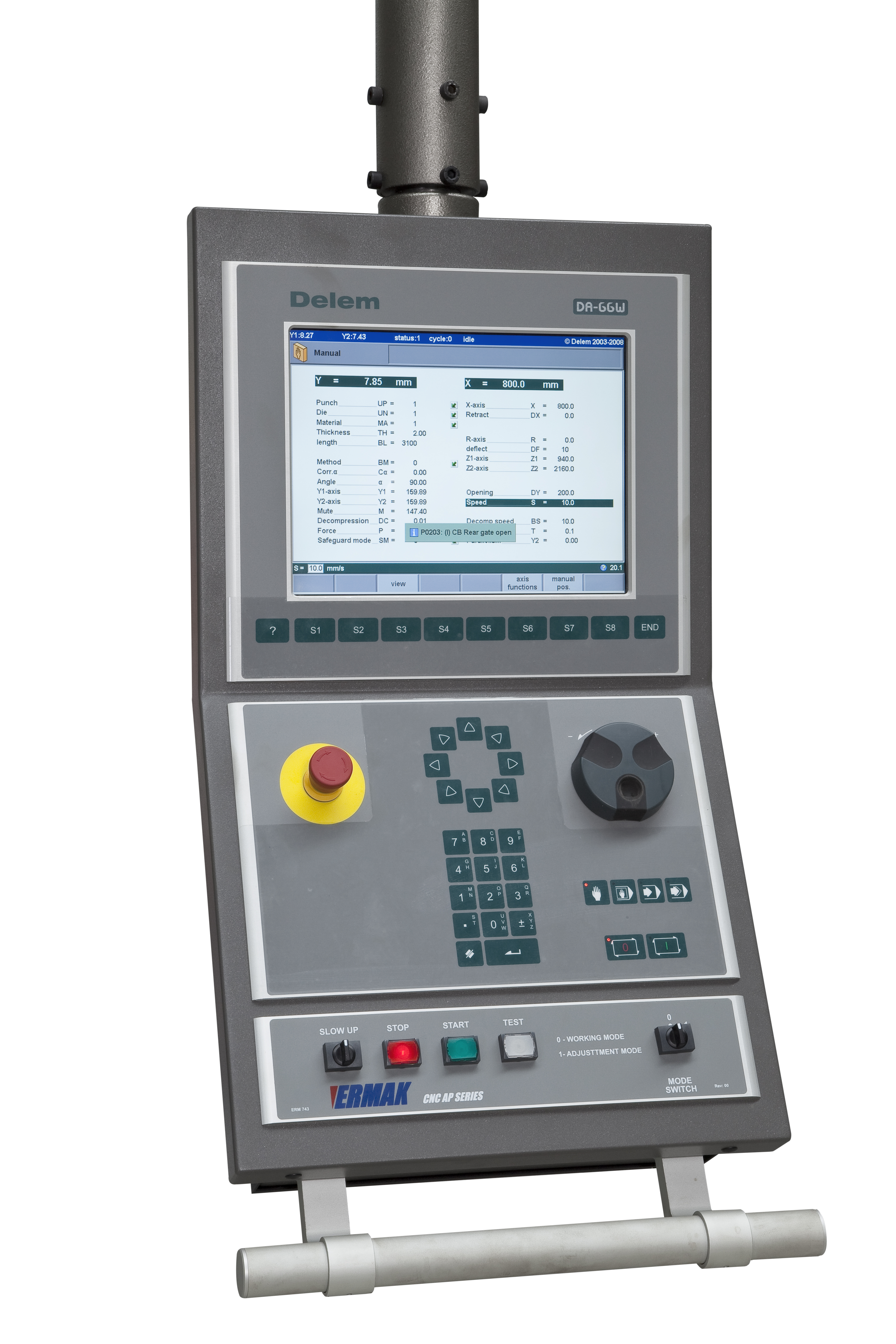

DELEM DA66W General Specifications
- Multitasking environment,
- 2D simulation of application before bending process,
- Microsoft Networking standard on board.
- Structured program storage {subdirectories],
- 10.4′ TFT High Resolution Colour display (640 x 480 pixels. 16-bit colour).
- 200MHz microprocessor,
- 32 Mb memory capacity,
- 4Mb free product and tools memory,
- 20 digits alpha-numeric drawing number.
- 7 digits program number.
- Program repeat max. 9999,
- Step number, 25 max.(sequences).
- Step repeat, 99 max..
- Millimeters/inches-USTON/KN.
- External connection of USB
- Keyboard, mouse.
- Error messaging system,
- PLC functionality (sequencer).
- Machine time + stroke counter.
- Tandem operation,
- Delem Modular compatible.
OPTIONAL CONTROLLERS

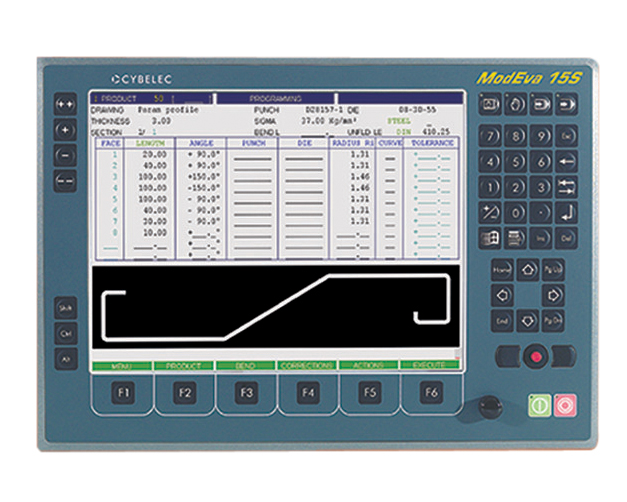

CYBELEC ModEva 1 5S 3D General Specifications
- 15 TFT” screen ( 1024×768 resolution)
- Optional Touch screen and Remote control
- ModEva 15 3D Windows 15″ screen.
- Wide ergonomie keyboard and quick cursor
- Integrated 3,5′ floppy disc, extra socket for keyboard and mouse
- IP 54 class protection
- 400mHz CPU, 64 MB RAM, hard disc |min. 2GB|
- Ethernet RJ45, USB 1.1 Port PCMCIA, Printer port, VGA output
- RS 232 and RS 422 port
- Interactive display of safety utilities and customized messages.
- CE security system management
- 16 axes could be configured and multi-lingual selection.
- Standard PC 1200, CYCAD and LUCIA programs
CYBELEC MODEVA 12 Controller General Specifications
3D Windows (Press CAD) based operating system. Wide ergonomie keyboard and integrated track sensor, 6 context-sensitive function keys. 12′ TFT high resolution color screen Large hard disc (min 2 GB) Integrated 3,5″ floppy disc (optional CD-ROM, LSI 20 or others) Printer output and 2 RS232 port, Ethernet RJ45 and 2 USB port. VGA screen output. Conversion inch/mm, ton/tons. Measurement of speed, stopping time and leakage of the beam. Management of CE safety cycles. Interactive display of safety utilities and customized messages. 16 axes could be configured and multi-lingual selection.
DELEM 69NXY 3D General Specifications
- Real Time 3D Windows* operating system.
- Stable, multitasking environment
- 3D simulation of application before bending process.
- Microsoft Networking standard on board,
- Structured program storage (subdirectories),
- 10,4” TFT High Resolution Colour display (640 x 480 pixels, 16 bit colour),
- 300MHz microprocessor,
- 32 Mb memory capacity,
- 8Mb free product and tools memory,
- 7 digits program number.
- 20 digits alpha-numeric drawing number.
- Program repeat max. 9999.
- Step number, 25 max. (sequences).
- Step repeat, 99 max..
- Millimeters / inches – USTON/KN ,
- External connection of USB keyboard, mouse.
- Error messaging system,
- PLC functionality (sequencer).
- Machine lime + stroke counter,
- Tandem operation,
- Defem Modular compatible.
ER80-3D + Cad interface
ERMAK Deriding solutions are displayed graphfcalfy in 2D and irvxate possible coKions witn me roots or the macrtne frame. Trie system also shows the position of the sheet wtpin the tools windows XP Emoedded numerical control. Its 10-inch TFT colour screen, rts simplified keyboard with large keys, and the 2D graphic software make the use ol the control very efficient and comfortable. Standart offline 3D software and DXF or IGES conversion importing from CAD system .simulate and display the leasWity o( the product in 3D or 2D Display, product. tools and detect collisions Programing punch or Die. Bend functions key and it is posstte to import a product created DXF or IGES ft: for use on a CAD system
ER 90
CNC Bending Simulations Work Center Graphic MuQ-ates numeric control that Windows’” style) and advanced 30 features Another Important feature of E Rvvw ts me envronment dedicated to the PRODUCTION MANAGING. Its ample and friendly GUI (Graphical User Interlace) is furthermore increased in value by an HIGH RESOLUTION LCD. with touch-Screen I /”. Simulations of Machine Body, Punch. Dies. Punch and Die holders Barnes. Doors, Floor. Backgauge. Sheet Pieces, Real Tine Bending Screen ERMAK is a real onboard machine CAM in fact graphic CREAIION of tool and 2D73D pam. MPORTAnON of 3D parts from EBS CADCAM. SIMULATION and 2D/3D reproduction, in real time, of al of the bend phases, are only some of the available basic performances.
Click below for detailed specifications.
CNC AP Synchronized Hydraulic Press Brake Specifications
