PRO 100 Hydraulic Profile Bending Machine
PRO 100 rolls are driven by hydraulic motor + planetary gearbox and gears.- Machine body manufactured of st-52 special steel
- Built in accordance with EU norms
- Rolls and shafts are made of special steel (42CrMo4) - Induction hardened and grinded
- Side guide rolls are in one direction manual adjustable
- Vertical and horizontal working possibility
- Hydraulic and electrical protection against overloading
- Digital readout to display position of lower rolls
- Torque limit device to prevent overloading during bending
- Independent hydraulic up and down movement of the bottom rolls
- One universal set of profile roll
- Portable control panel with foot pedal in order to control material from required locations.
- Manual lubrication
- Detailed instruction manual
Optional accessories:
- Special profile rolls for bending pipe, H, I, U, etc type materials
- Special mechanical guide rolls in order to facilitate angle bending for PRO 100
- Electric motor according to required voltage and frequency
- Hydraulic guide rolls for PRO 100 model in two directions
- Digital readout for displaying the position of the hydraulic guide rolls
- Spiral bending device
- Variable speed of rotation
- NC playback and NC graphic control system
| PROFILE | PRO 100 |
 |
2" X 1/4" (28" DIA) · 3-1/2" X 5/16" (40" DIA) · 4" X 3/8" (47" DIA) |
| 2" X 1/4' (32" DIA) · 3" X 5/16" (47" DIA) · 4" 3/8" (63" DIA) | |
| 4" (47" DIA) | |
| 4" (40" DIA) | |
| 4-3/4" (47" DIA) | |
| 1-9/16" X 3/8" (16" DIA) · 4" X 3/4" (24" DIA) · 4-3/4" X 1" (63" DIA) | |
| 2-3/8" X 3/8" (16" DIA) · 4" X 1-9/16" (24" DIA) · 8" X 1-3/8" (40" DIA) | |
| 1-3/16" (16" DIA) · 2" (20" DIA) · 2-3/8" (40" DIA) | |
| 1-9/16" (16" DIA) · 2-3/8" (24" DIA) · 2-3/4" (32" DIA) | |
| 2" X .080" (24" DIA) · 4-3/4" X .080" (79" DIA) · 1-9/16" X .118" (118" DIA) | |
| 2-3/8" X 1/8" (16" DIA) · 4-1/2" X .141" (40" DIA) · 4-1/2" X 3/16" (24" DIA) | |
| 1-9/16" X 3/4" X .080" (20" DIA) · 4" X 2" .197" (118" DIA) · 5-1/2" X 1-9/16" X .118" (157" DIA) | |
| 2" X .098" (20" DIA) · 3-1/2" X ,157" (98" DIA) · 4" X 4" X .118" (118" DIA) | |
| 3" X 2-3/4" (32" DIA) · 8" 3" (47" DIA) | |
| 3" X 2-3/4" (32" DIA) · 8" 3" (47" DIA) | |
| 3" (24" DIA) · 8" (32" DIA) | |
| 4-3/4" (40" DIA) · 4" (47" DIA) | |
| 4-3/4" | |
| POWER | 15 HP |
| ROLLS | 12.4' |
| SHAFT | 3.9" |
| BENDING SPEED | 213 IPM |
| WEIGHT | 4,928 LBS |
| WIDTH | 48" |
| LENGTH | 57" |
| HEIGHT | 66" |
BENDMAK CYL 3-roll Asymmetrical Plate Bending Machine
Standard Equipment
For the perfect result, top and bottom rolls driven by brake electric motor and gearboxes in gear system- Cast iron body
- Opening top roll to side after bending for taking out the material easily
- Cone bending device
- Main motor with brake
- Movement of the back and bottom rolls up and down manual with hand wheel
- Portable control panel in order to control material from required locations with foot pedal
- Built in accordance with EU norms
Optional Accessories
- Back roll powered by electric motor
- Induction hardened rolls
- Digital readout for displaying the position of back roll
CYL 3 Rolls Asymmetrical Plate Bending Machine Specifications
Click HERE for specifications...

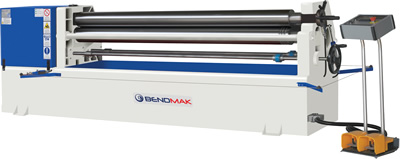

BENDMAK CYL - ST 3-roll Asymmetrical Plate Bending Machine
The most economical and powerful machine among the 3-rolls mechanical plate bending machines. Because of the electrical motor on the upper and lower rolls, driven by planetary gearbox through a gear system this machine is the most preferable type in the sheet metal processing industry.
The machine is built of St-52 steel, is robust and long-lasting by the welded steel frame.
Standard Equipment
- Back roll with motor
- Cone Bending Device
- Induction Hardened Rolls (HPRC 58-62)
- Body made of St-52 steel
- Opening top roll to side after bending for taking out the material easily
- Asymmetrical design for perfect pre-bending
- For the perfect result, top and bottom rolls driven by brake electric motor and planetary gearboxes in gear system
- Rolls made of special steel
- Built accordance with EU norms
- Portable control panel in order to control material from required locations
Optional Accessories
- Extended rolls for setting up profile rolls when required
- Profile rolls
- Digital readout for displaying the position of back roll
- Bottom roll powered with electric motor
CYL-ST 3 Rolls Asymmetrical Plate Bending Machine Specifications
Click HERE for specifications...
PRO 80 Hydraulic Profile Bending Machine
Driven by electric motor, planetary gearbox and gear system- Machine body manufactured of st-52 special steel
- Built in accordance with EU norms
- Rolls and shafts are made of special steel (42CrMo4) - induction hardened and grinded
- Vertical and horizontal working possibility
- Guide rolls adjustment manually to one direction
- Hydraulical and electrical protection against overloading
- Digital readout to display position of lower rolls
- Torque limit device to prevent overloading
- One set of profile rolls
- Portable control panel with foot pedal in order to control material from required locations
- Independent hydraulical up and down movement of the bottom rolls
- Manual lubrication
- Detailed instruction manual
Optional accessories
- Special profile rolls for bending pipe, H, I, U, etc type materials
- Special mechanical guide rolls in order to facilitate angle bending
- Electric motor according to required voltage and frequency
- Hydraulic guide rolls for PRO 80 model in two directions
- Digital readout for displaying the position of the hydraulic guide rolls (for PRO 80)
- Spiral bending device
- Variable speed of rotation
- NC playback and NC graphic control system
PRO 60 Hydraulic Profile Bending Machine
Driven by electric motor, planetary gearbox and gear system- Machine body manufactured of st-52 special steel
- Built in accordance with EU norms
- Rolls and shafts are made of special steel (42CrMo4) - induction hardened and grinded
- Top roll is moveable up and down hydraulically
- Guide rolls adjustment manually to one direction
- Hydraulical and electrical protection against overloading
- Digital readout to display position of lower rolls
- Torque limit device to prevent overloading
- One set of profile rolls
- Portable control panel with foot pedal in order to control material from required locations
- Independent hydraulical up and down movement of the bottom rolls
- Manual lubrication
- Detailed instruction manual
Optional accessories
- Special profile rolls for bending pipe, H, I, U, etc type materials
- Special mechanical guide rolls in order to facilitate angle bending
- Electric motor according to required voltage and frequency
- Spiral bending device
- Variable speed of rotation
- NC playback and NC graphic control system
PRO 50 Hydraulic Profile Bending Machine
Machine body manufactured of st-52 special steel- Built in accordance with EU norms
- 3 driven rolls
- Rolls and shafts are made of special steel - induction hardened and grinded
- Top roll is moveable up and down hydraulically
- Main motor with brake
- Vertical and horizontal working possibility
- Guide rolls adjustment manually to one direction
- One set of standard rolls
- Independent hydraulical up and down movement of the bottom rolls
- Portable control panel with foot pedal in order to control material from required locations
- Manual lubrication
- Detailed instruction manual
Optional accessories
- Digital readout to display position of top roll
- Special mechanical guide rolls in order to facilitate angle bending
- Special profile rolls for bending pipe, H, I, U, etc type materials
- Electric motor according to required voltage and frequency
